Location

Portland, OR

Scale

90,000 sf

Program

Office, Retail, Affordable Housing

Cost

$34M ($377/sf)

Status

On hold

Awards

US Tall Wood Building Prize Competition

LafargeHolcim Awards, Acknowledgement Prize

Architect's Newspaper, Best of Design Awards for Research—Honorable Mention

Chicago Athenaeum, American Architecture Awards

Framework is the first wood high-rise design in the US to receive approval for construction. The project seeks to be a catalyst that connects sustainable urban development to rural economic growth regionally and nationally. Framework is supported by a 1.5 million dollar award from the US Tall Wood Building Prize Competition to offset the costs of testing and peer review necessary to pursue a performance-based project beyond what is permitted in current building codes.

The mixed-use project combines retail and public exhibition on the ground floor, with five levels of office, and 60 units of affordable housing. Framework’s commercial tenants are all B corporations—businesses certified to meet rigorous standards of social and environmental performance, accountability, and transparency. The housing component of the project accommodates residents earning less than 60 percent of the Area Median Income (AMI).

Framework square 900 128x0x809x1209 q85

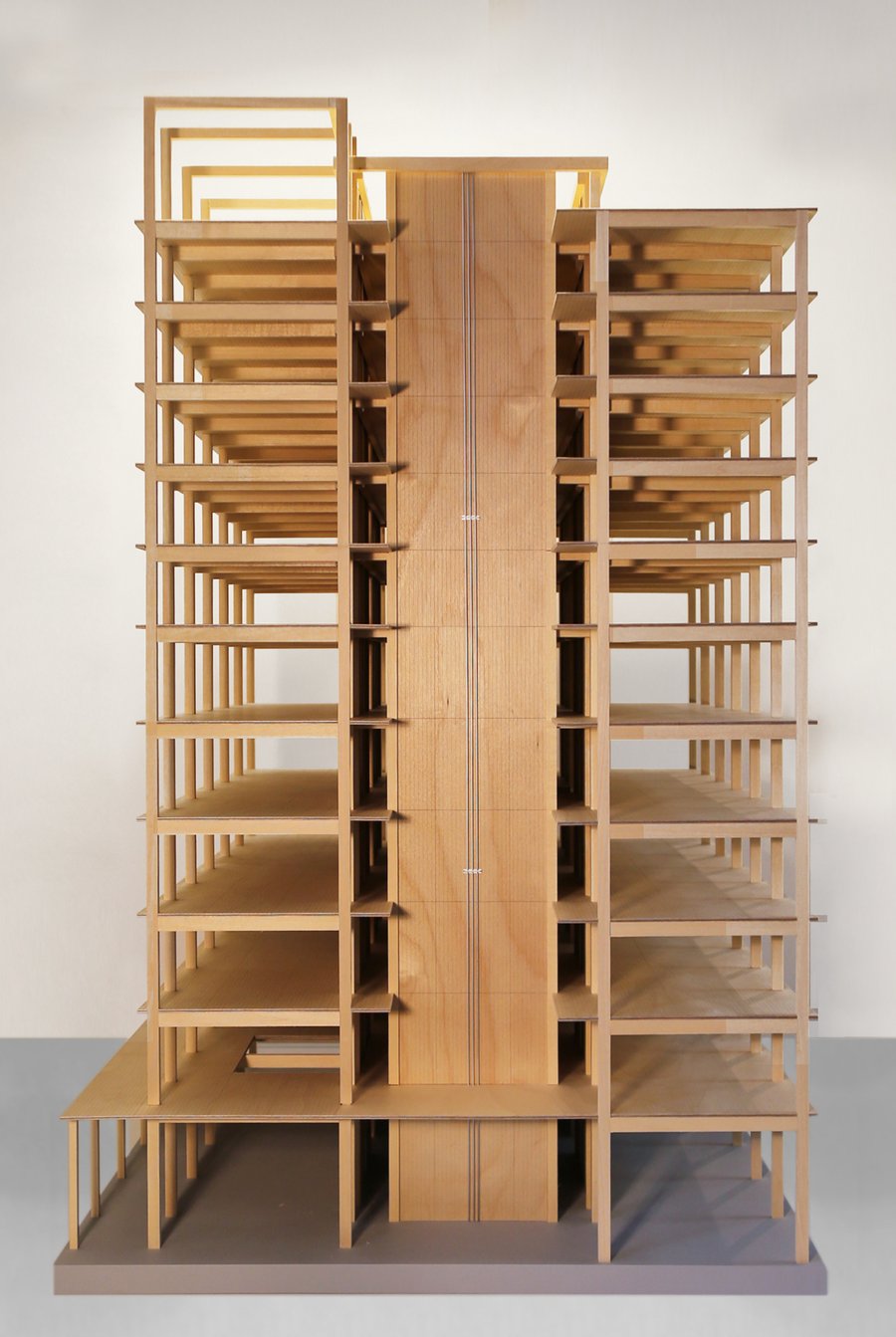

Framework model 06 courtesylever 900 51x34x1902x2839 q85
Framework 03 1280 98x0x2723x1814 q85

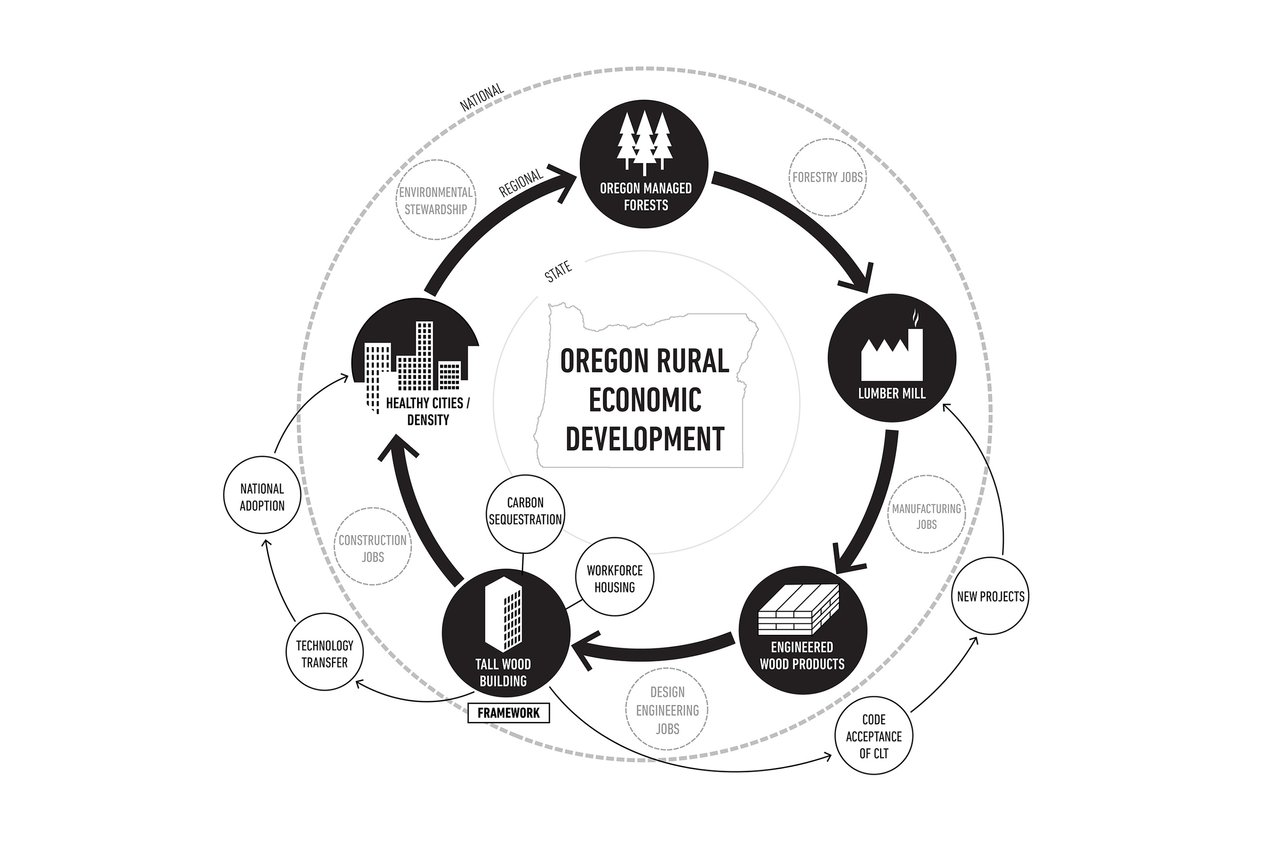

Framework is part of a mutually beneficial cycle between natural resources, the rural timber industries that rely on these resources, and the cities served by the completion of these buildings. Demand for tall wood buildings in urban areas drives economic opportunity in rural areas by the creation of jobs and the manufacturing of wood products to meet the market need.

Framework 04 1280 0x0x1600x809 q85
Framework 02 900 142x258x2708x1183 q85

Timber Structure

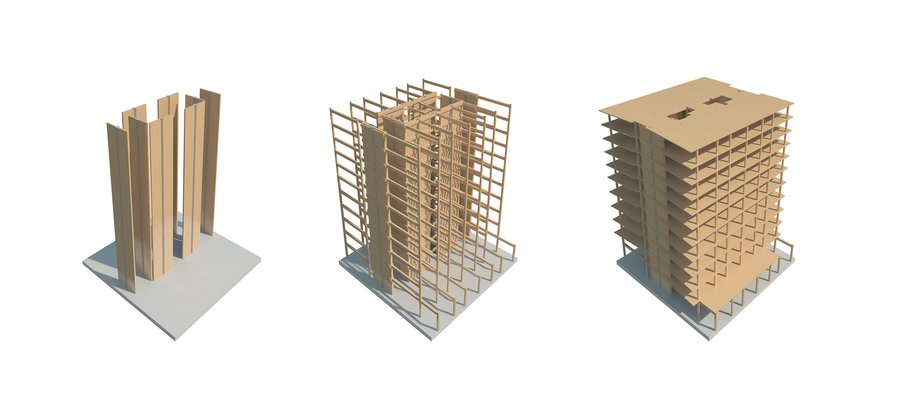

Framework's structural system is made from glulam columns and beams, Cross-Laminated Timber (CLT) floor/ ceiling panels, and a CLT rocking wall core system. The project targets that a minimum of 50-percent of the volume of wood will be sourced locally from sustainable forests and/or manufacturers in Oregon.

Framework’s design is intended to showcase the nature of an innovative mass timber structure on the city skyline and at the pedestrian level. The façade is split and lifted to reveal the project’s CLT core and the exposed wood interiors in the ground floor public spaces. The glass-enclosed shaft in front of the CLT core also serves as a heat recovery system for heating the housing units.

Framework 01 1280 66x0x1534x1021 q85

Lobby and Tall Wood Exhibition

Framework 05 900 39x0x1124x752 q85

Office for B-Corporations

Framework 06 900 6x0x2100x1403 q85

Affordable Housing

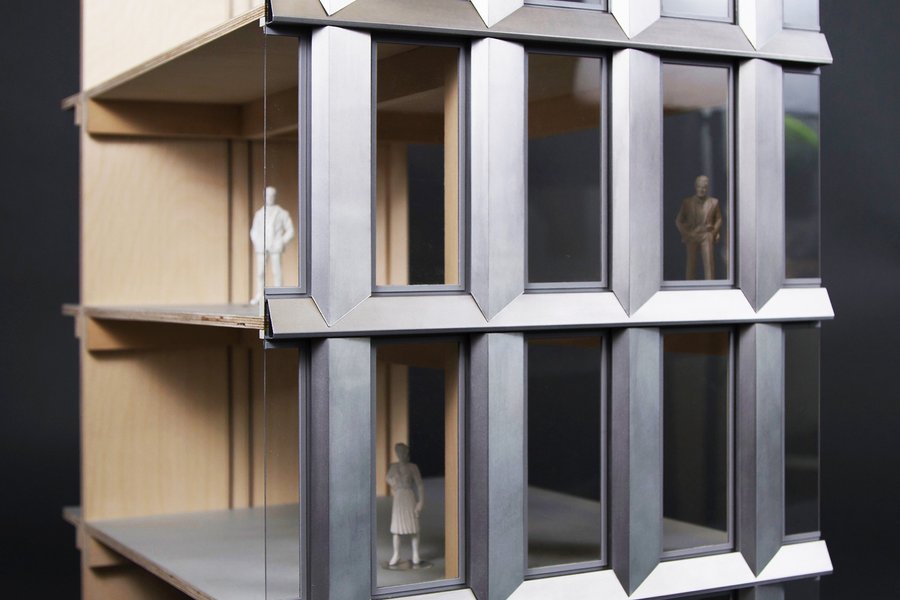

Section model of facade and clt rocking wall structure 900 0x853x1941x1295 q85

In the current regulatory environment, approval for a high-rise wood structure requires an alternative approach to the prescriptive building code. This process includes extensive testing of engineered wood products to meet the code performance of an equivalent steel or concrete structure. The development of Framework is intended to provide a permitting pathway for future tall wood buildings by clearing specific hurdles related to fire, structural, and seismic safety. Test results will be made public to spur wider adoption of mass timber.

Image 8 24 16 at 11.50 pm 1 1000 0x171x4032x2686 gray q85

5/6

These structural tests included a series of bare panel tests on full-scale nine-ply CLT panels, crushing tests on five-ply CLT panels, and testing of three different splice methods for joining the rocking wall’s nine-ply CLT panels.

20160915 bare clt 1000 0x139x3264x2175 gray q85

6/6

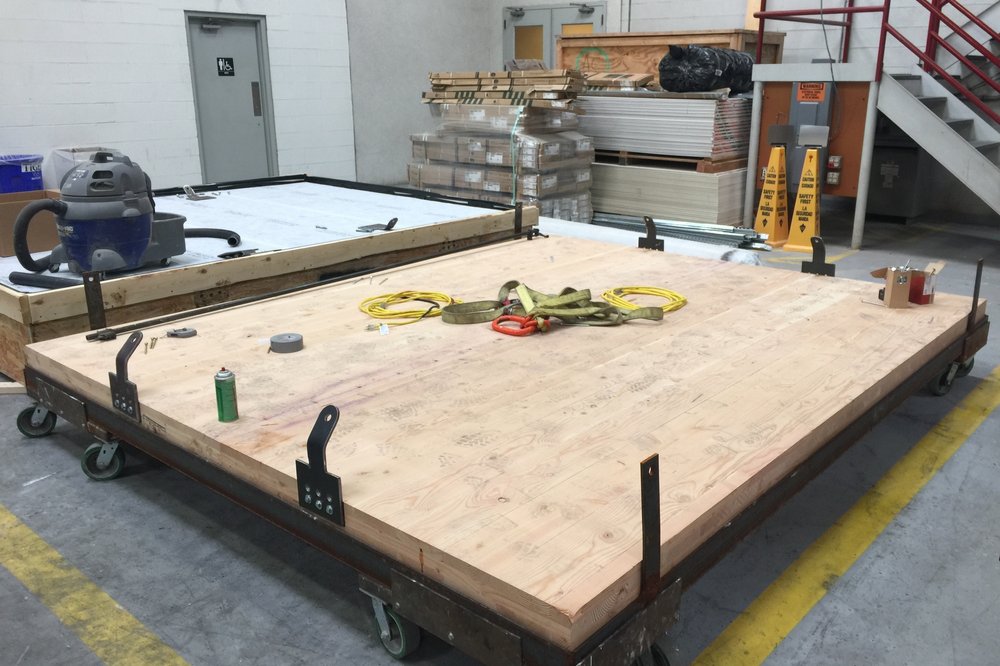

Testing at Intertek in Pennsylvania to confirm airborne and impact sound isolation performance of Framework's CLT floor assemblies.

Column to beam connection prior to testing1 1000 0x2x1280x852 gray q85

1/6

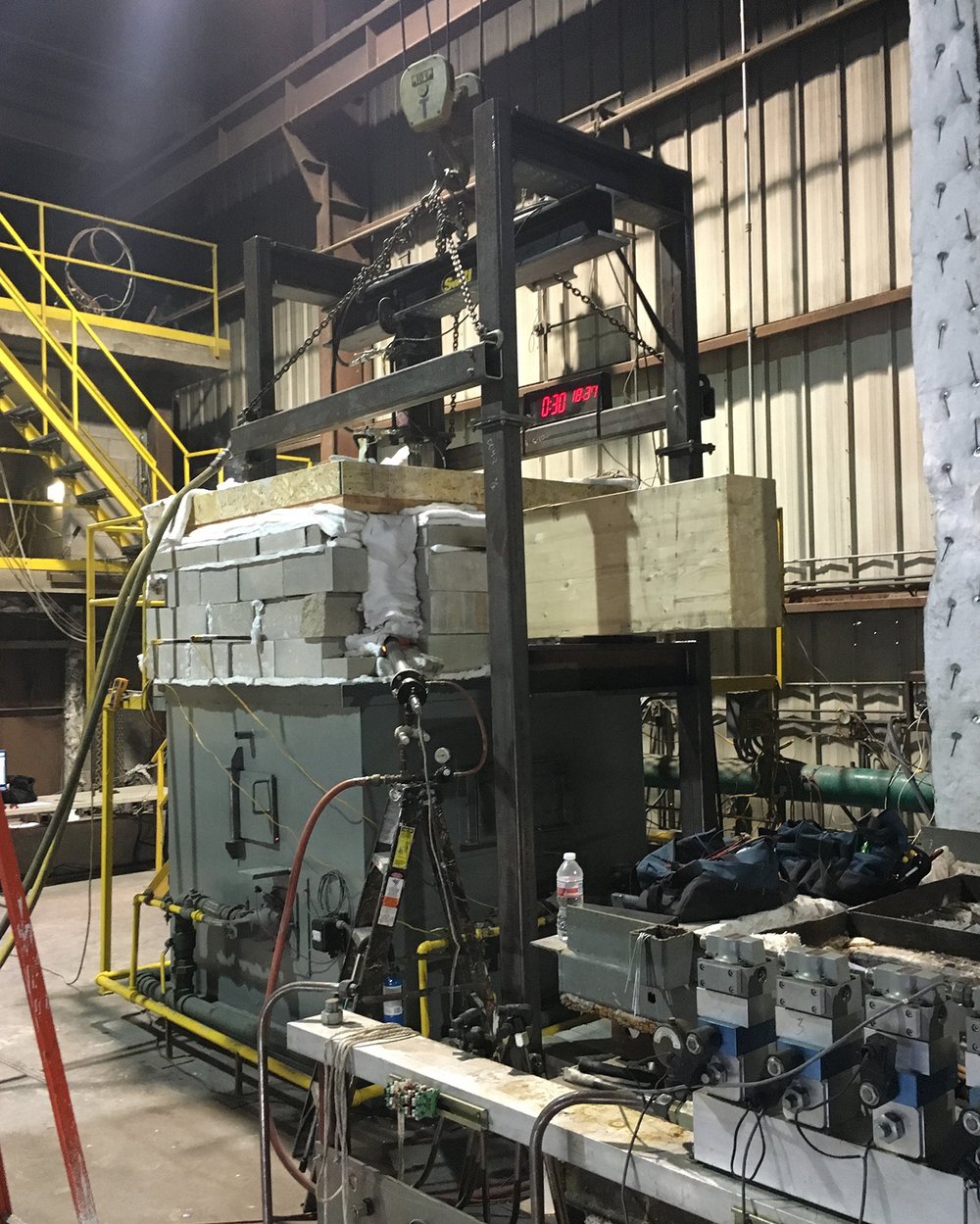

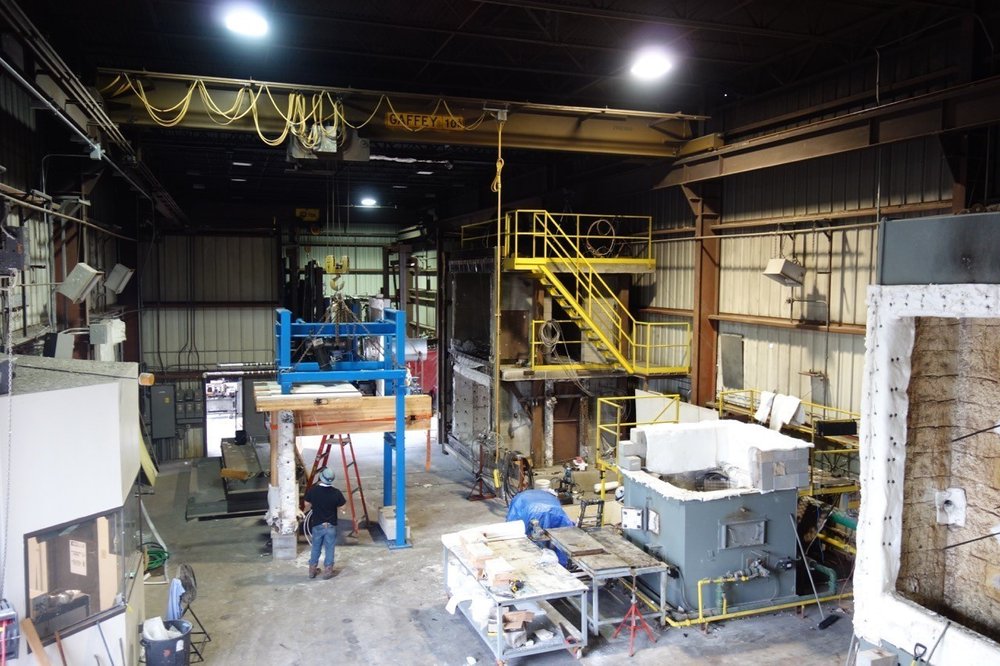

Successful fire testing of Framework's timber connections, wall, and floor assemblies was undertaken at a facility in Texas.

Framework 08 1000 0x59x1400x1750 gray q85

2/6

The custom glulam beam-to-column connection developed for Framework received the first two-hour fire rating in the world.

Framework 11 1000 0x0x2500x1658 gray q85

3/6

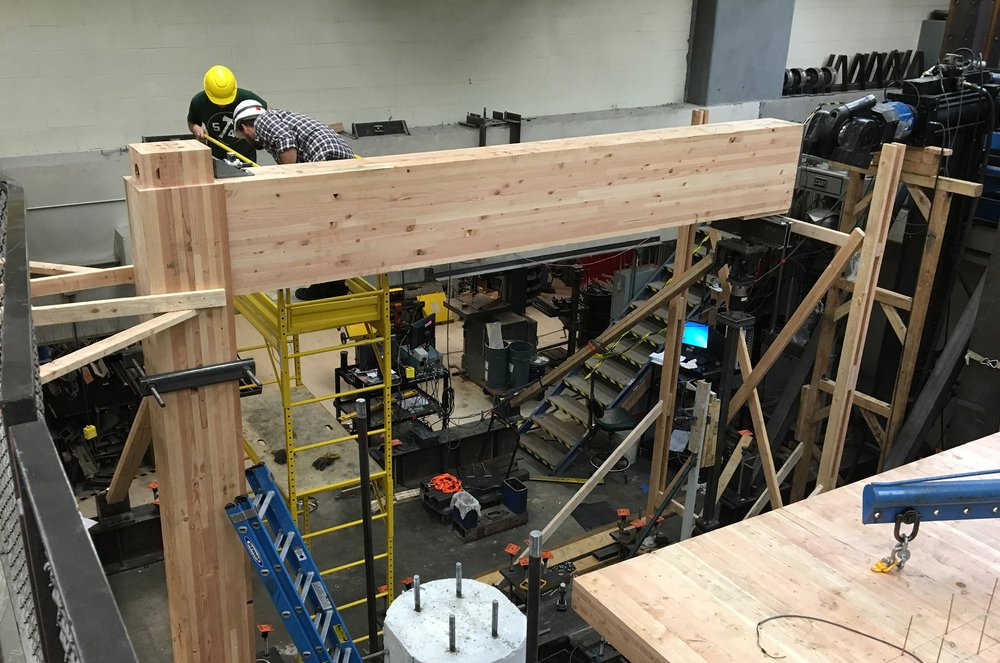

Full scale tests were undertaken at Portland State University to validate that the custom glulam beam-to-column connection developed for Framework could undergo the maximum anticipated seismic drift from an earthquake and remain undamaged.

Framework10 1000 0x0x1500x1000 gray q85

4/6

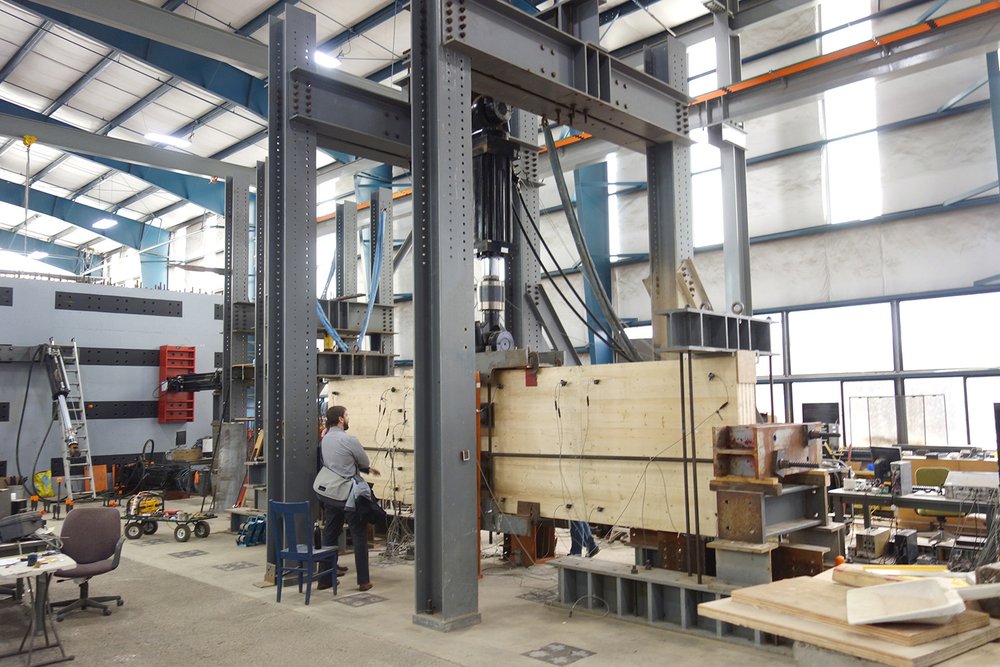

Several tests were completed at Oregon State University to validate the structural resiliency of Framework's self-centering post-tensioned CLT rocking wall.

Image 8 24 16 at 11.50 pm 1 1000 0x171x4032x2686 gray q85

5/6

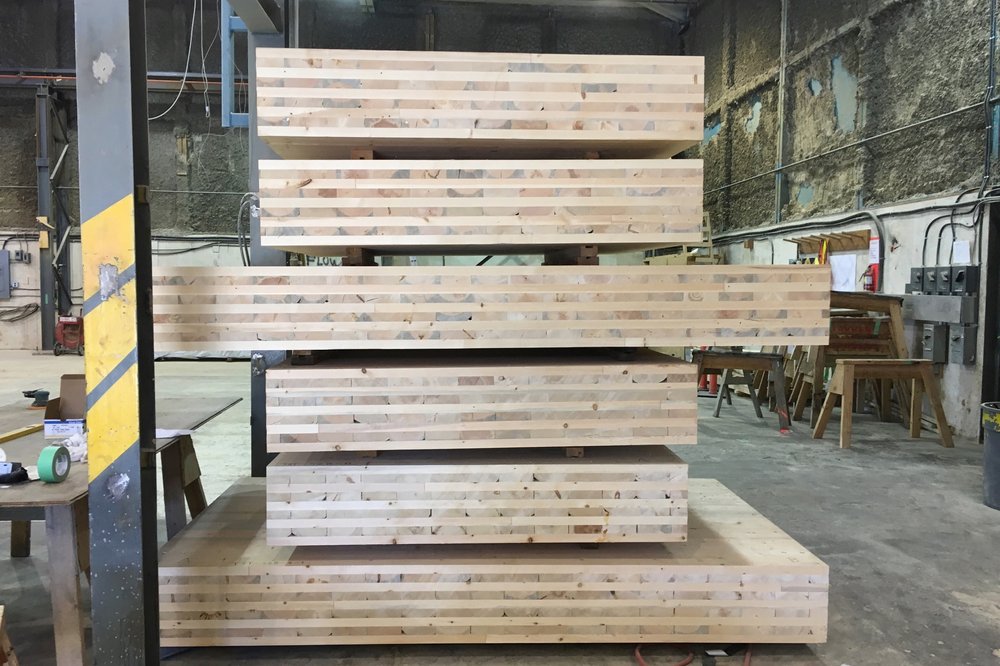

These structural tests included a series of bare panel tests on full-scale nine-ply CLT panels, crushing tests on five-ply CLT panels, and testing of three different splice methods for joining the rocking wall’s nine-ply CLT panels.

20160915 bare clt 1000 0x139x3264x2175 gray q85

6/6

Testing at Intertek in Pennsylvania to confirm airborne and impact sound isolation performance of Framework's CLT floor assemblies.

Column to beam connection prior to testing1 1000 0x2x1280x852 gray q85

1/6

Successful fire testing of Framework's timber connections, wall, and floor assemblies was undertaken at a facility in Texas.

Framework 08 1000 0x59x1400x1750 gray q85

2/6

The custom glulam beam-to-column connection developed for Framework received the first two-hour fire rating in the world.

Framework 03 900 357x282x2338x1557 q85

CLT Rocking Wall, Static State

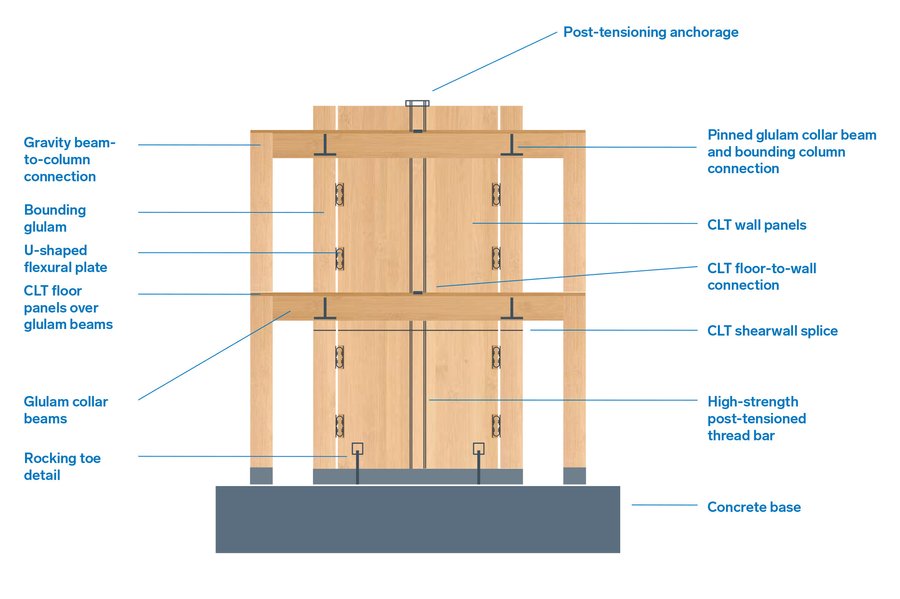

Framework will have a rocking wall core made from nine-ply CLT. The core is a low damage system that is designed to self-center following a seismic event.

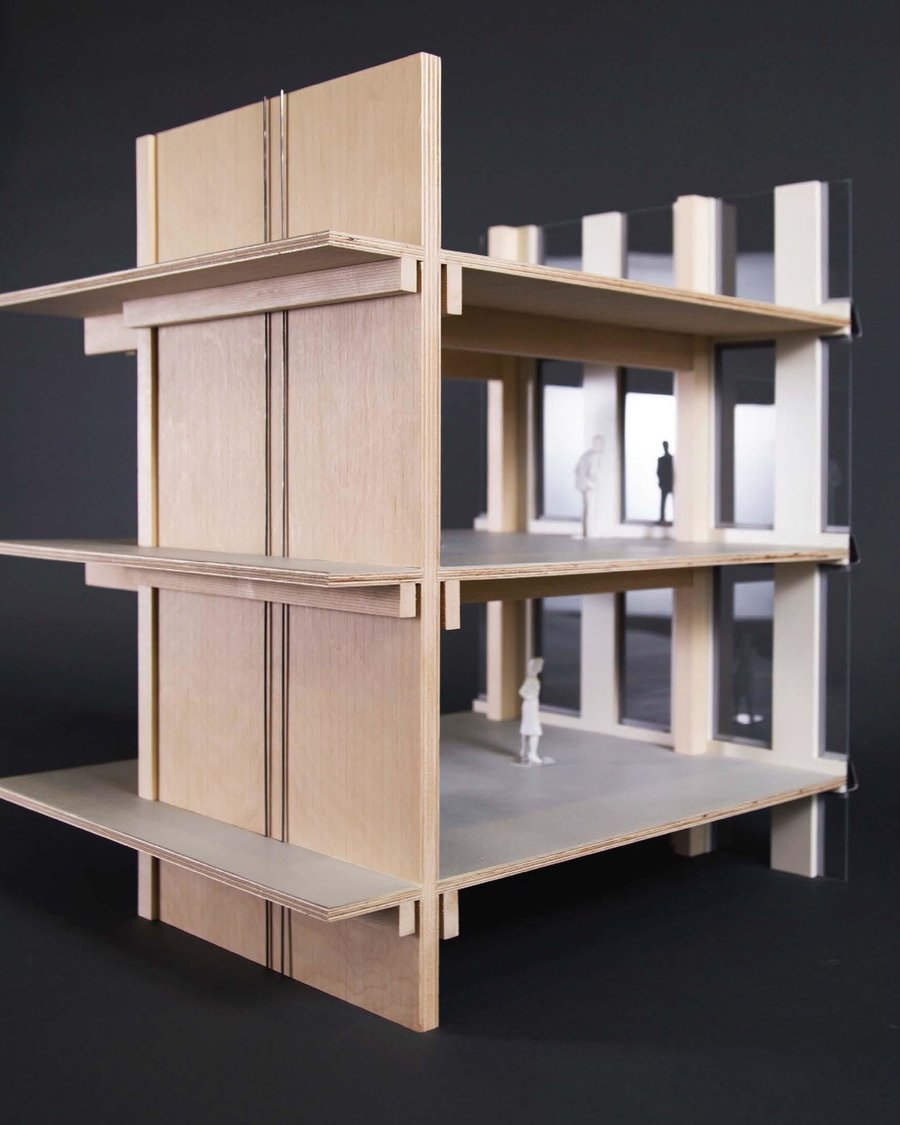

Framework model 11 courtesylever 900 75x0x1729x2160 q85

Slideshow close Slideshow arrow black Slideshow arrow black

Timber Structure

Framework's structural system is made from glulam columns and beams, Cross-Laminated Timber (CLT) floor/ ceiling panels, and a CLT rocking wall core system. The project targets that a minimum of 50-percent of the volume of wood will be sourced locally from sustainable forests and/or manufacturers in Oregon.

Lobby and Tall Wood Exhibition

Office for B-Corporations

Affordable Housing

CLT Rocking Wall, Static State

Framework will have a rocking wall core made from nine-ply CLT. The core is a low damage system that is designed to self-center following a seismic event.
