TreeHouse

Show hide Project Info

Location

Portland, OR

Scale

50,000 sf

Program

Housing, Retail

Completion

2015

LEED Certification

Silver

Awards

AIA Portland, Merit Award

World Architects, Building of the Year, Finalist

World Architecture News, Residential Award, Long List

Architizer A+ Awards, Best Multi-Family Housing, Finalist

Excellence in Concrete Awards, Oregon and Aggregate Producers Association, Finalist

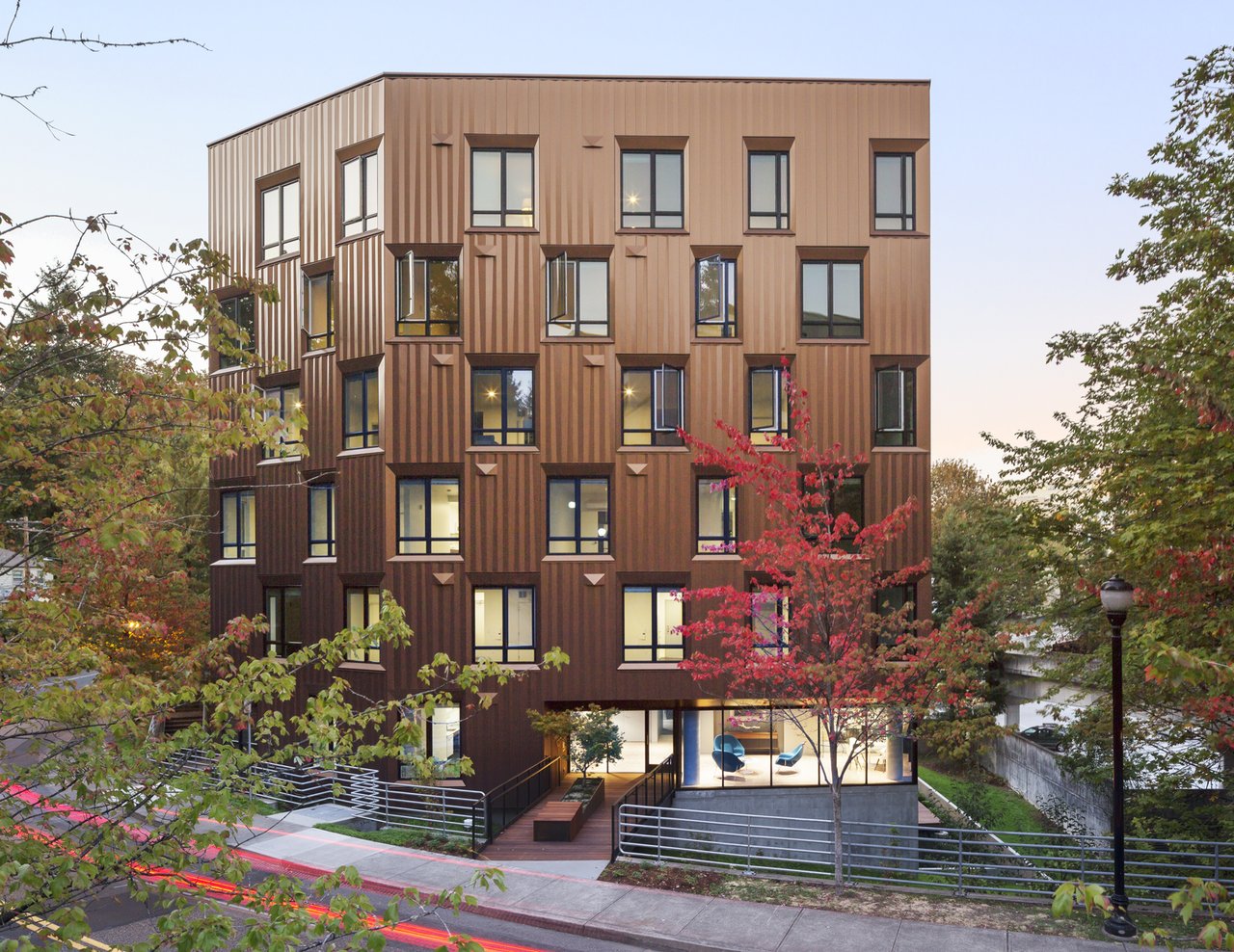

Treehouse is a seven-story, 69-unit, multi-family apartment building located on a steep forested site on the Marquam Hill campus of the Oregon Health & Science University (OSHU) in Portland. The project program provides housing for OHSU staff, students, and affiliates who are interested in a live/work/no-commute lifestyle, as well as a new retail destination on the ground floor.

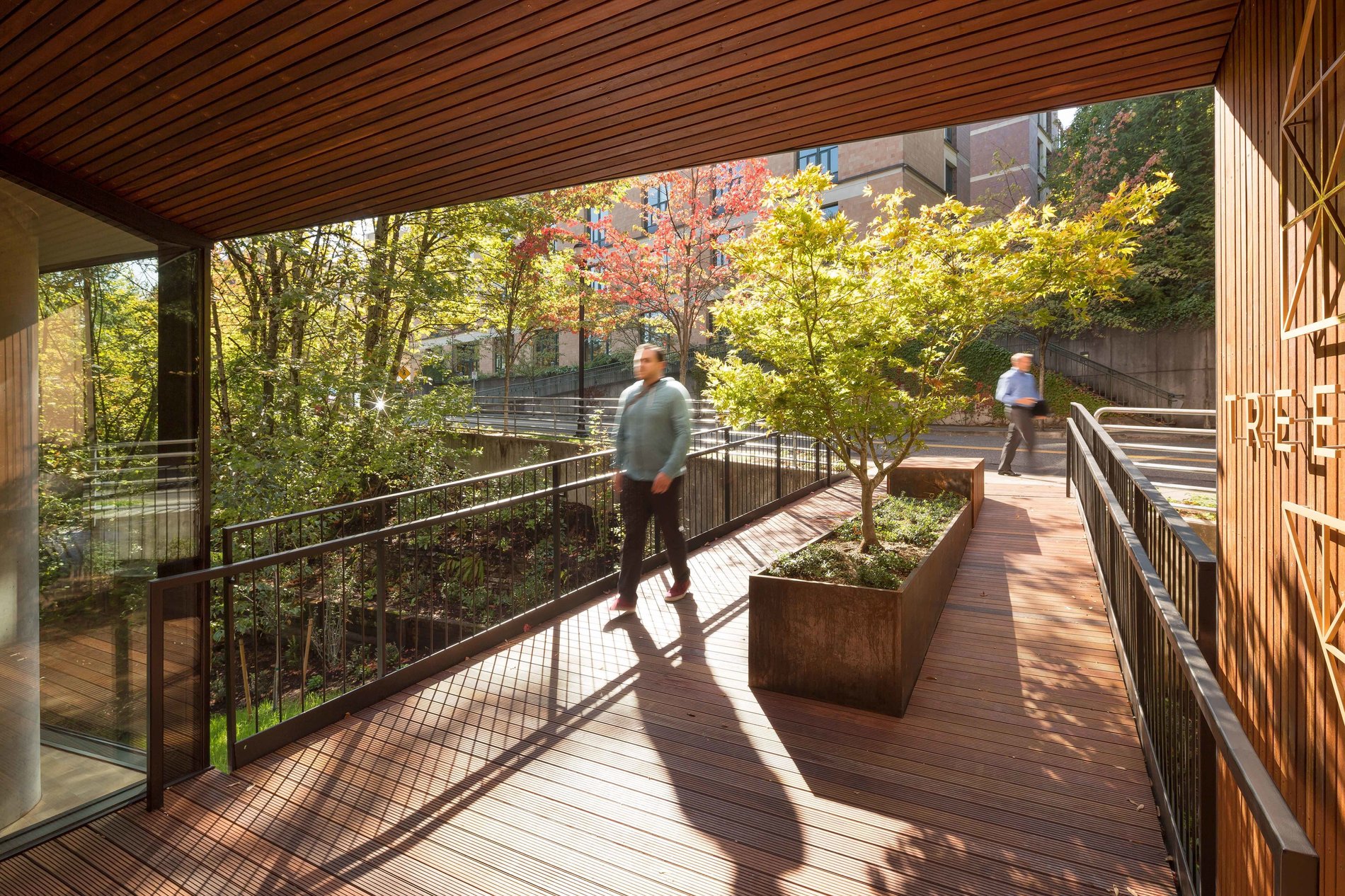

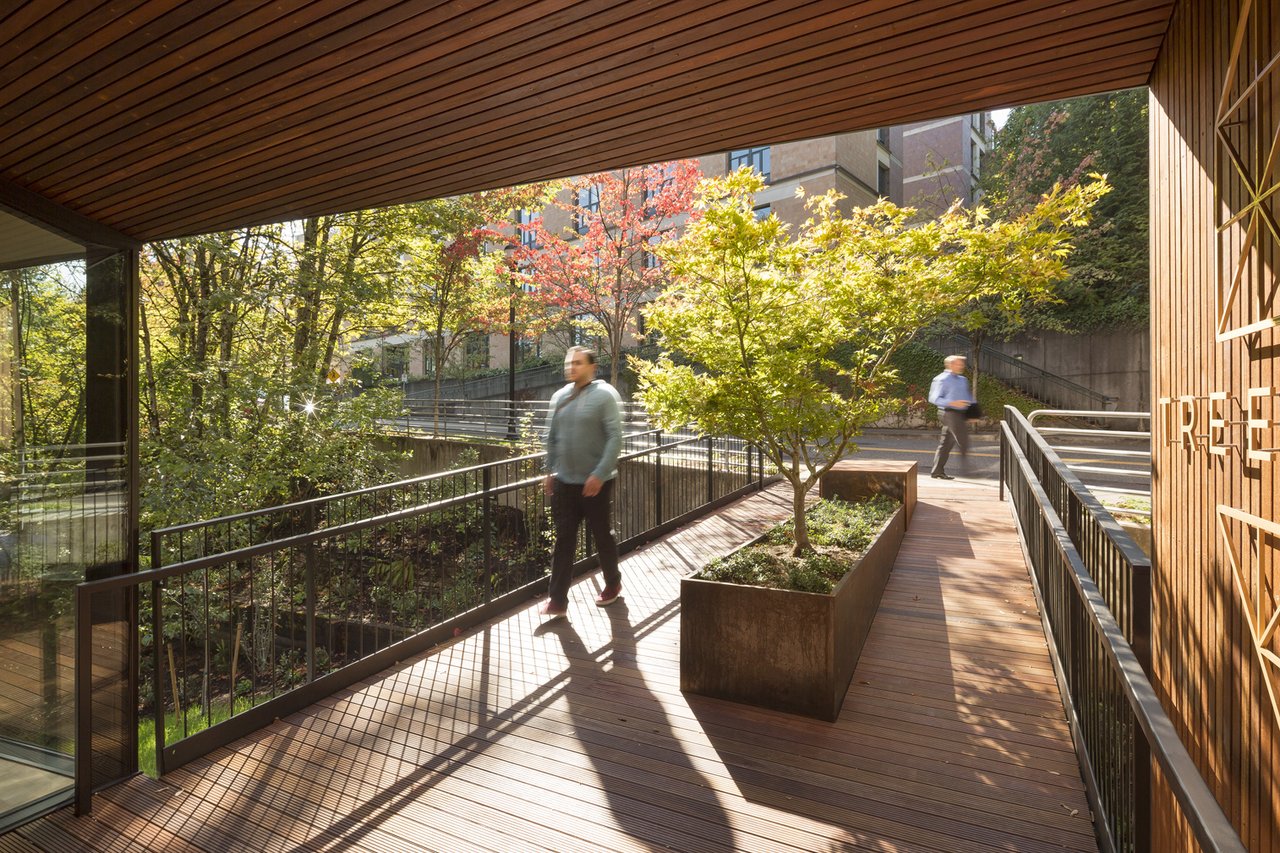

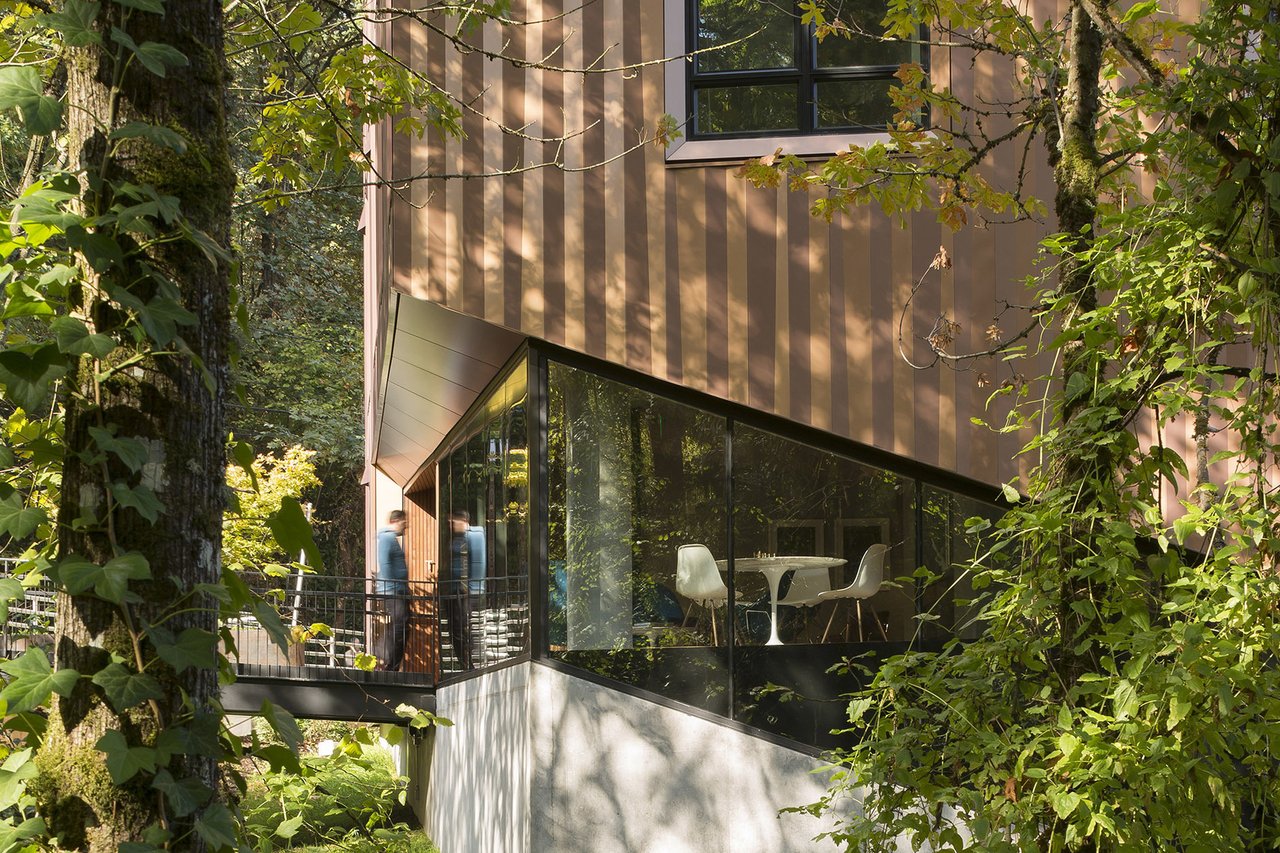

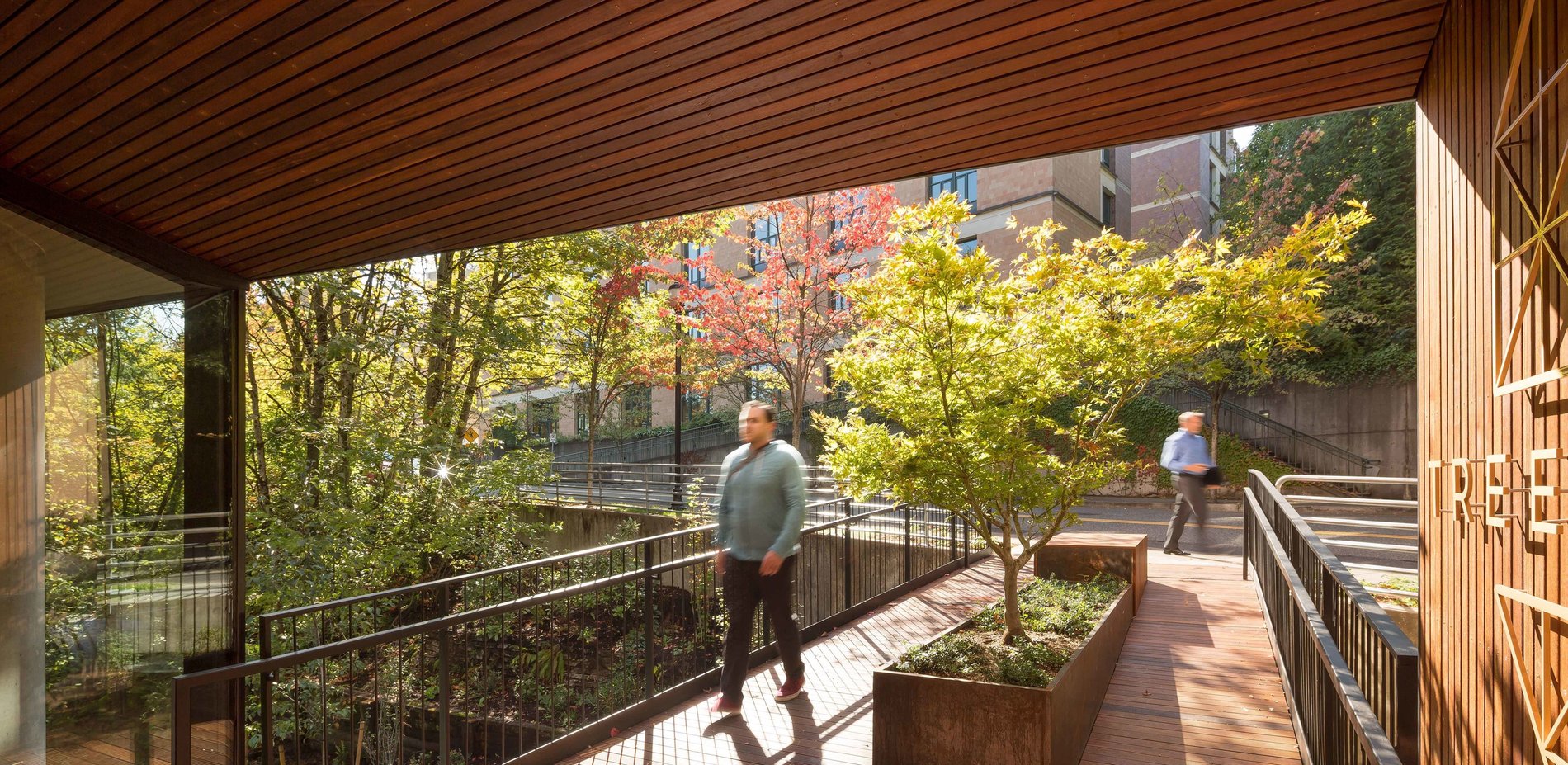

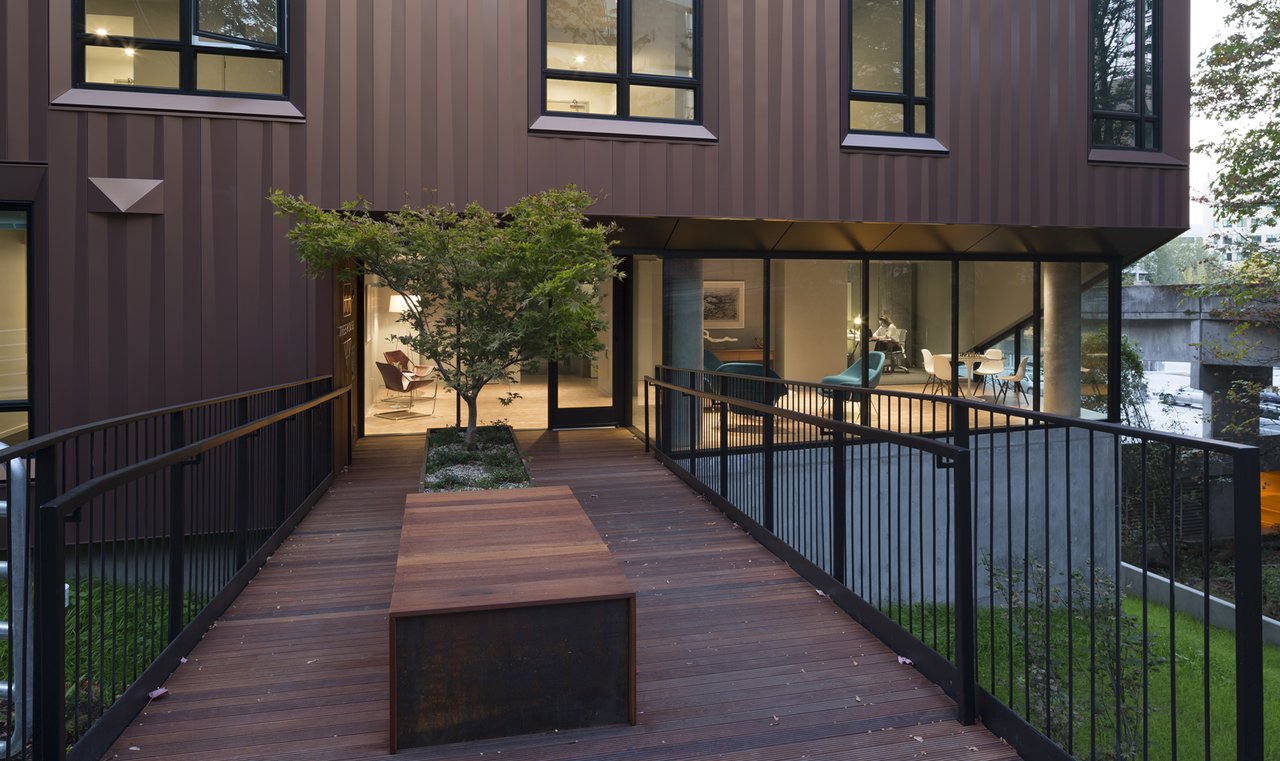

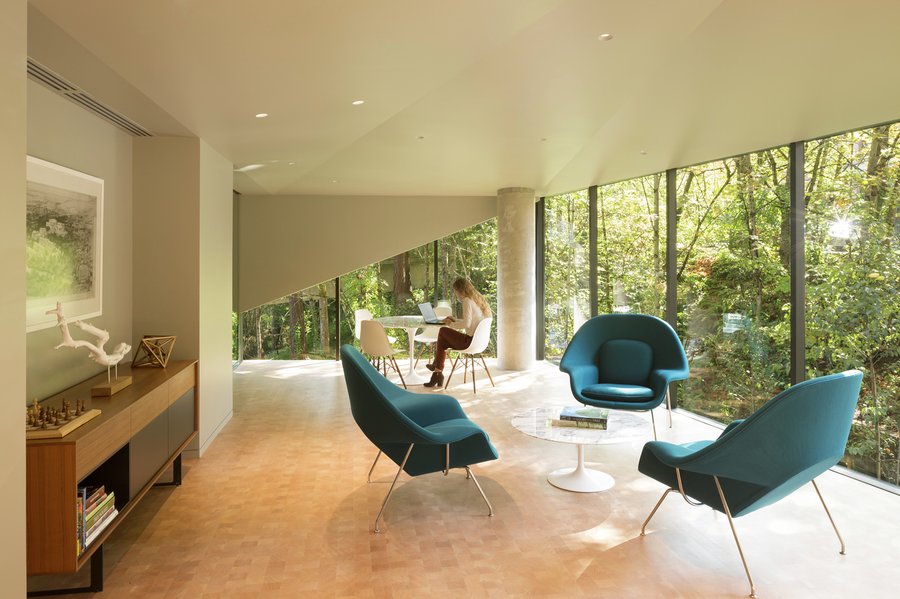

The design bridges the urban and topographical qualities of the campus by placing the building as an “in the round” object in the forest. Instead of cutting into the hill, the building form is carved to follow the landscape. From the interior entry lobby, the experience of the forested landscape is framed. From the exterior, the building connects the upper level bridge entry to the lower level retail and rain garden landscape and deck that mitigates all stormwater runoff.

Treehouse 01 swimmer 900 0x0x1600x1231 q85
Treehouse 14 swimmer 1280 0x1134x1880x1253 q85
Img 1337 900 0x0x3000x2000 q85
03 th elev finaleast 1280 304x4x2175x1451 q85

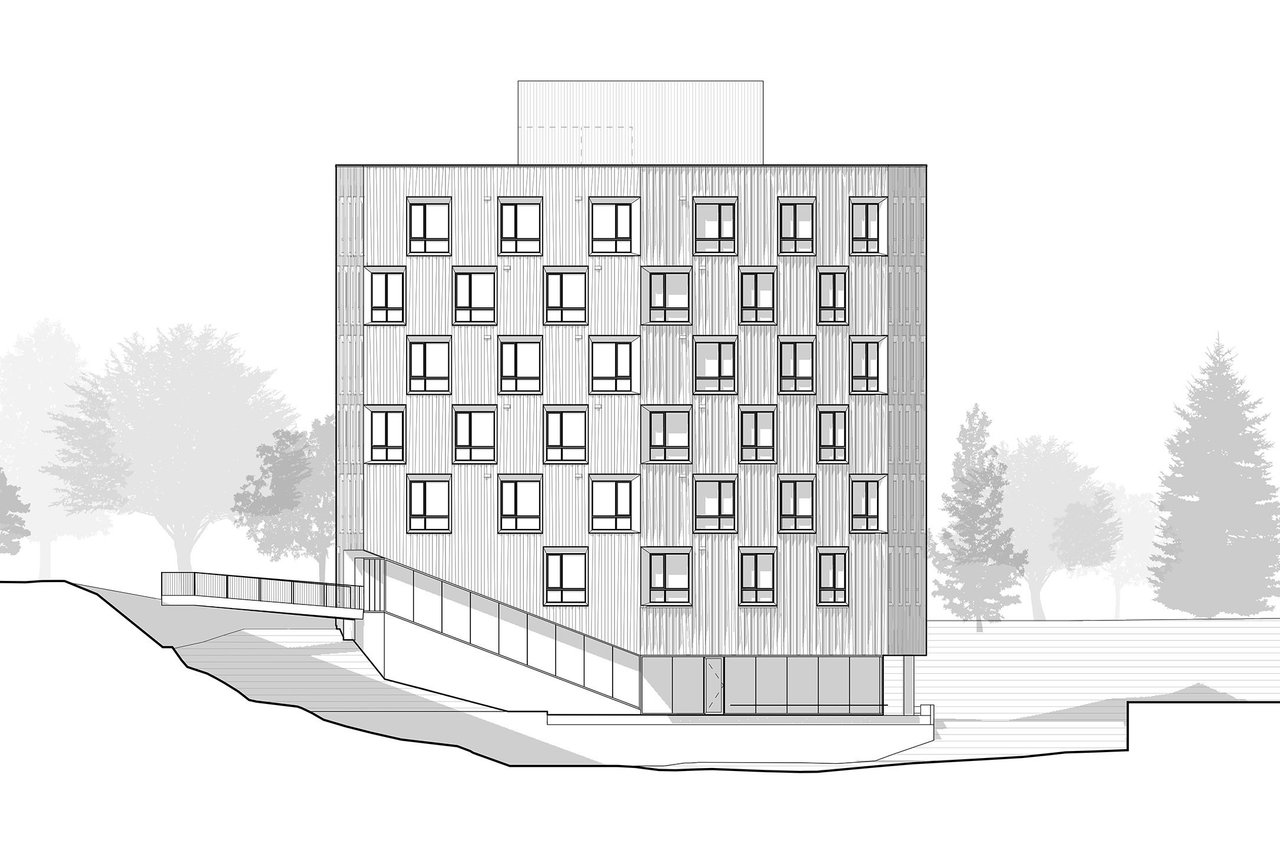

Section Elevation

Treehouse 06 swimmer 900 0x6x1067x1591 q85
Treehouse 11 swimmer 900 0x6x1067x1591 q85
Treehouse 21 swimmer 1280 86x0x1514x1009 q85
Treehouse 23 swimmer 900 0x4x1600x1067 q85
Treehouse 28 swimmer 900 0x0x1600x1067 q85

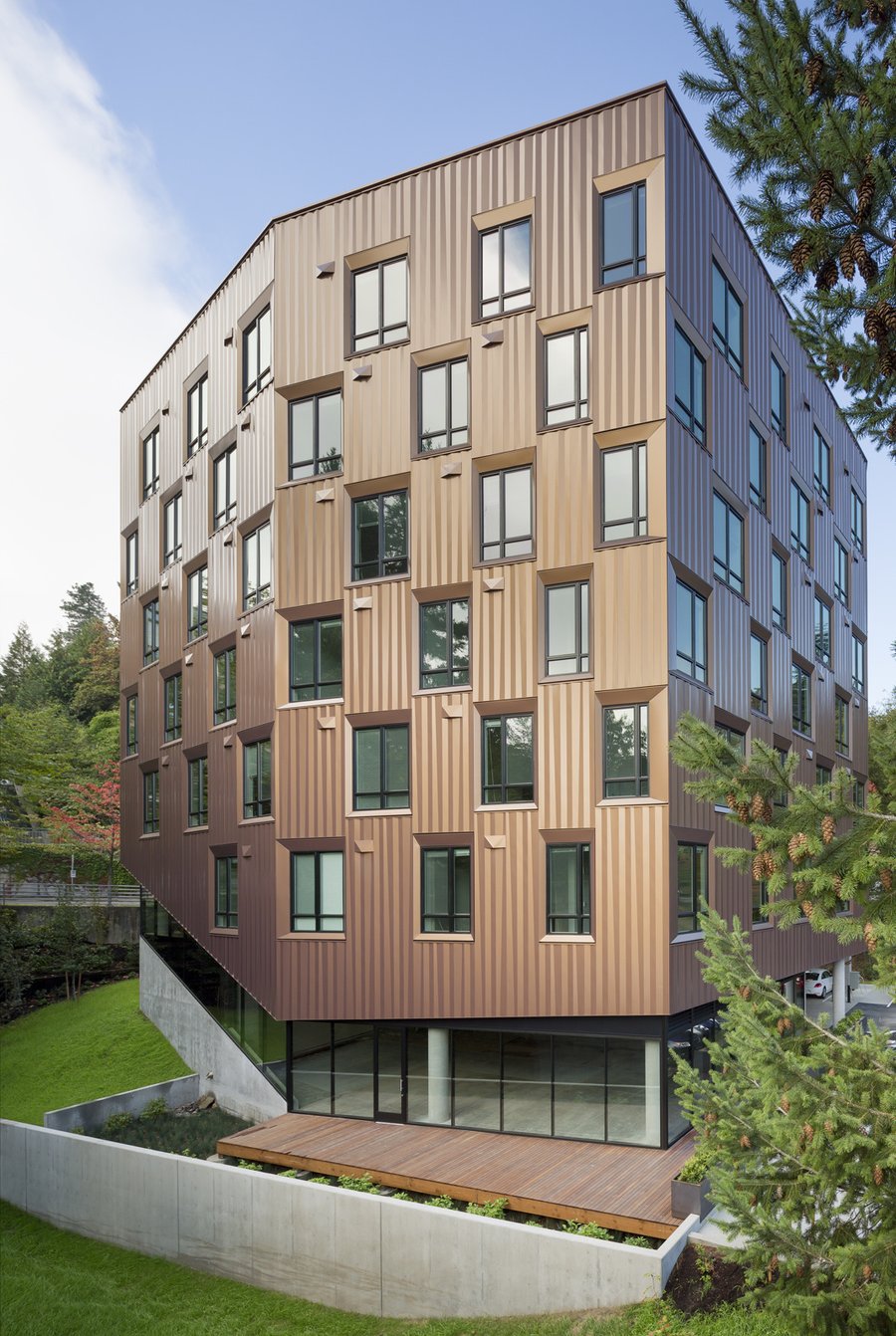

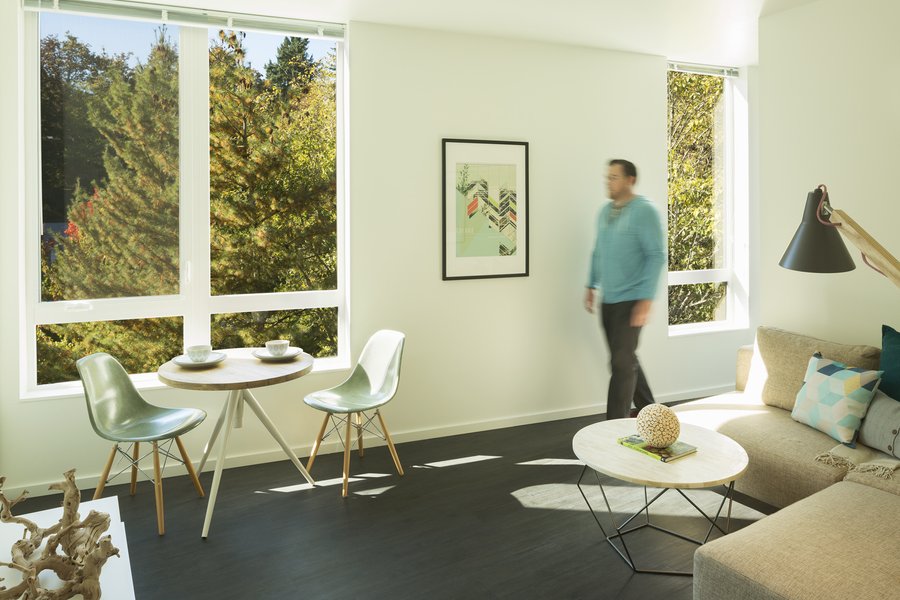

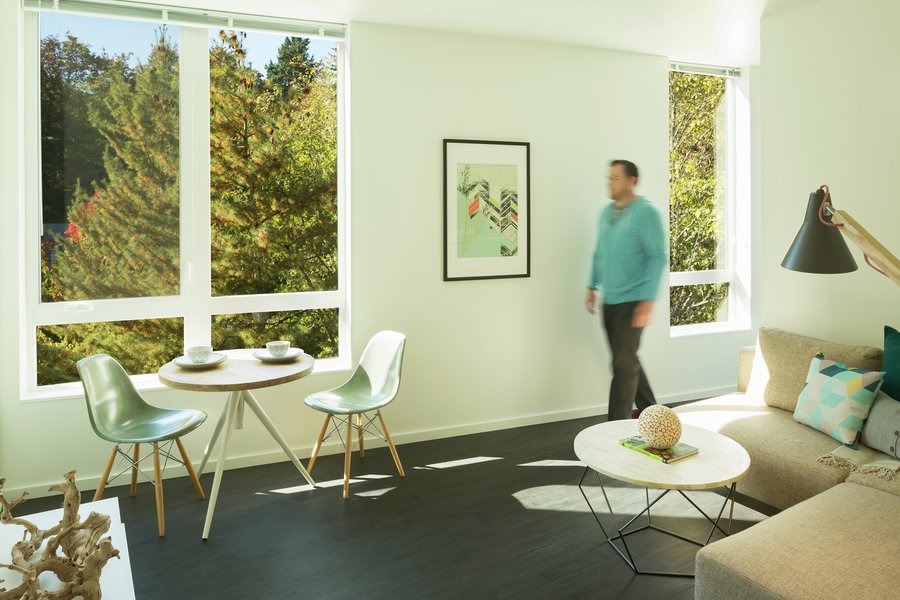

The units are designed as a series of interlocking volumes arranged around a compact central core. The irregular octagonal plan was driven by mandated setback points required to allow for glazing on every face of the building. Windows have been carefully placed to maximize daylight and spaciousness in the studio and one-bedroom flats.

Treehouse 32 swimmer 1280 128x88x1472x981 q85
Img 9730 1000 0x104x2448x3059 gray q85

4/5

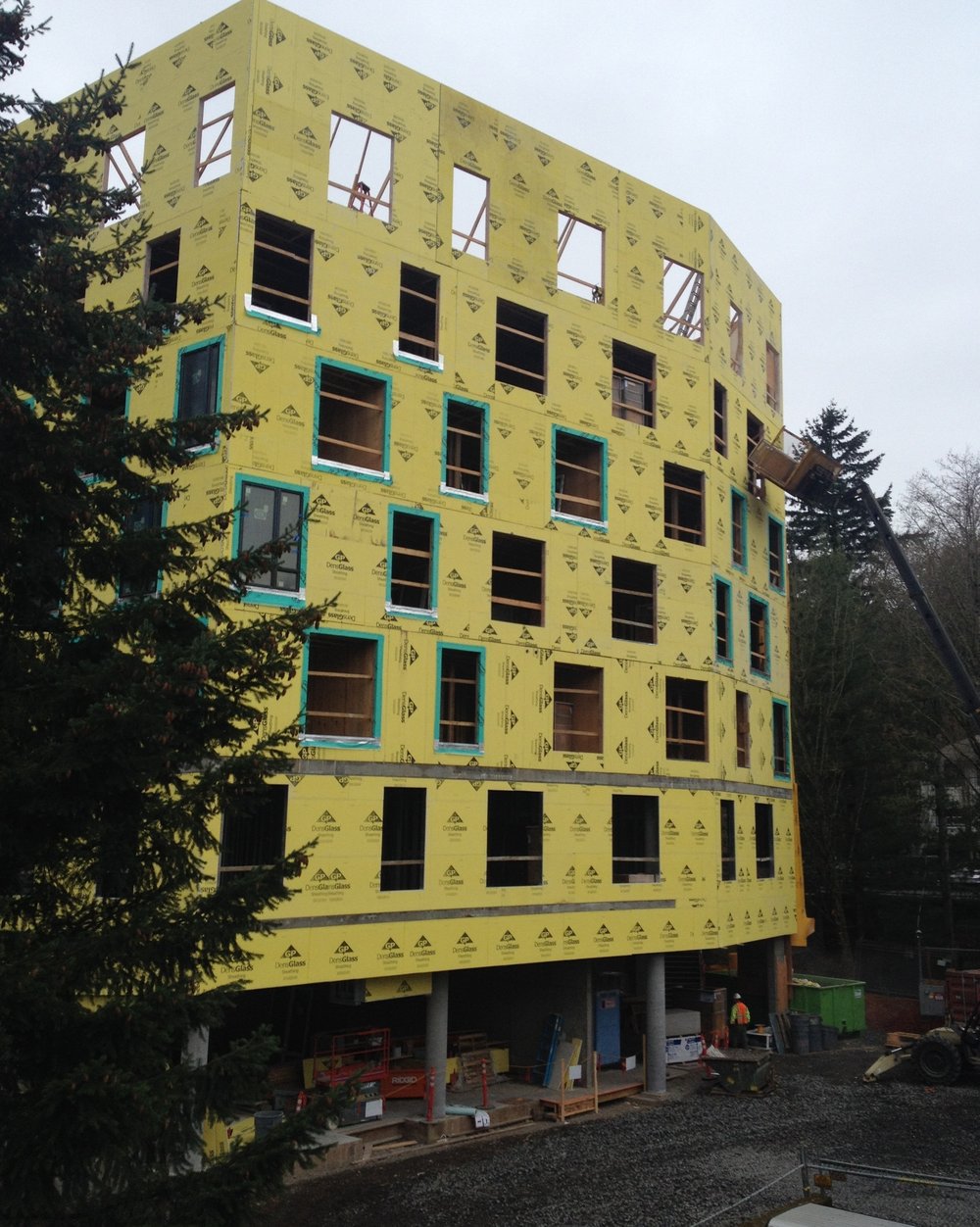

Completion of the building's exterior framing and sheathing.

Img 3850 1000 0x8x2000x2985 gray q85

5/5

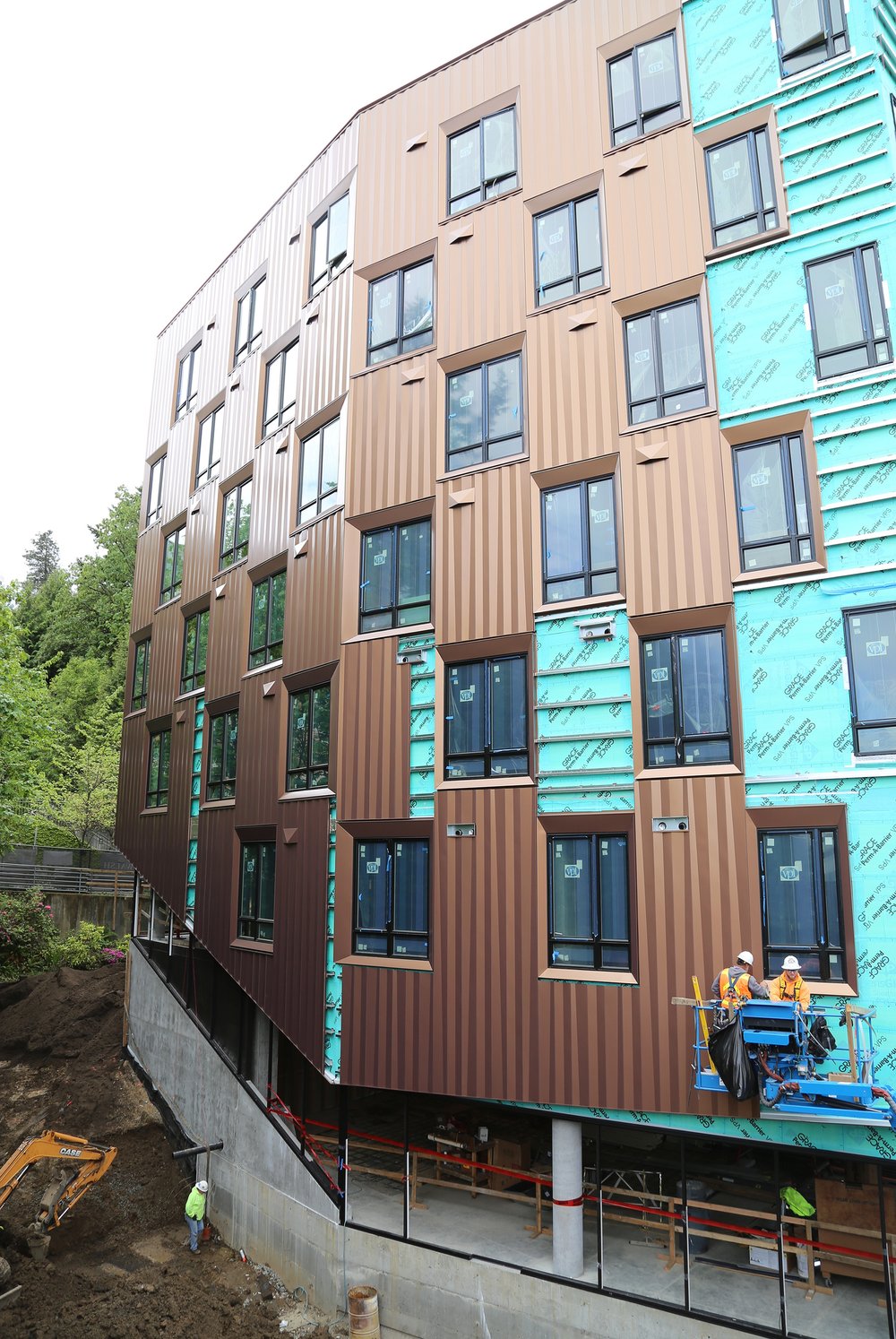

The variegated sheet metal cladding is installed on lifts by Skyline Sheet Metal.

Dsc02596 lr 1000 0x0x3000x2000 gray q85

1/5

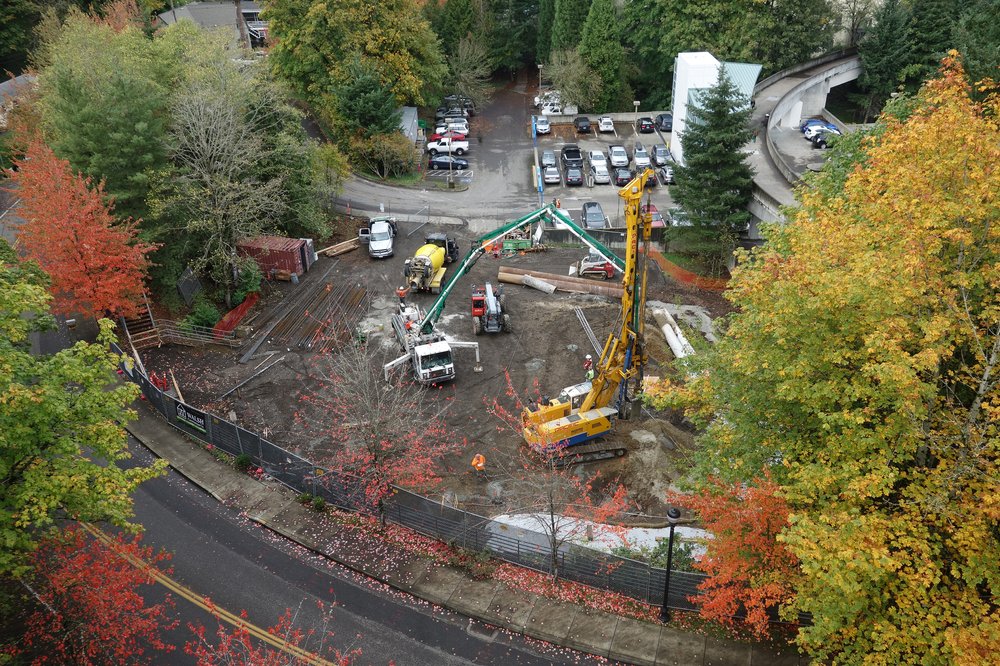

Sub-grade site work begins by constructing drilled shafts for the new building foundation. Typical light-framed wood construction over a two story concrete podium rises above the site.

Img 1337 1000 0x0x3000x2000 gray q85

2/5

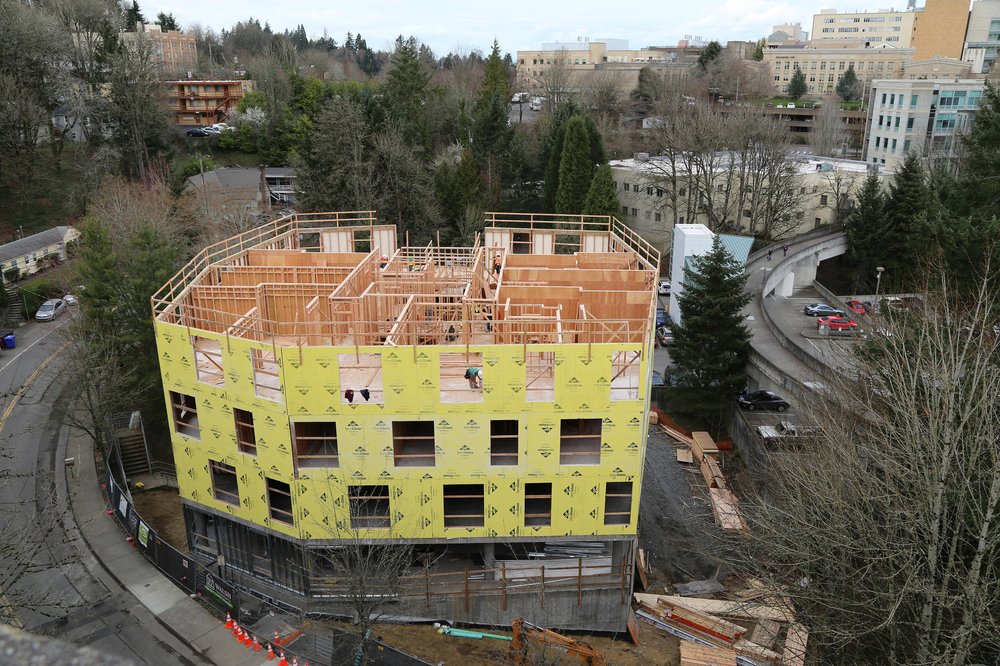

Light-framed wood construction over a two story concrete podium rises above the site.

Img 9459 1000 70x0x1958x2448 gray q85

3/5

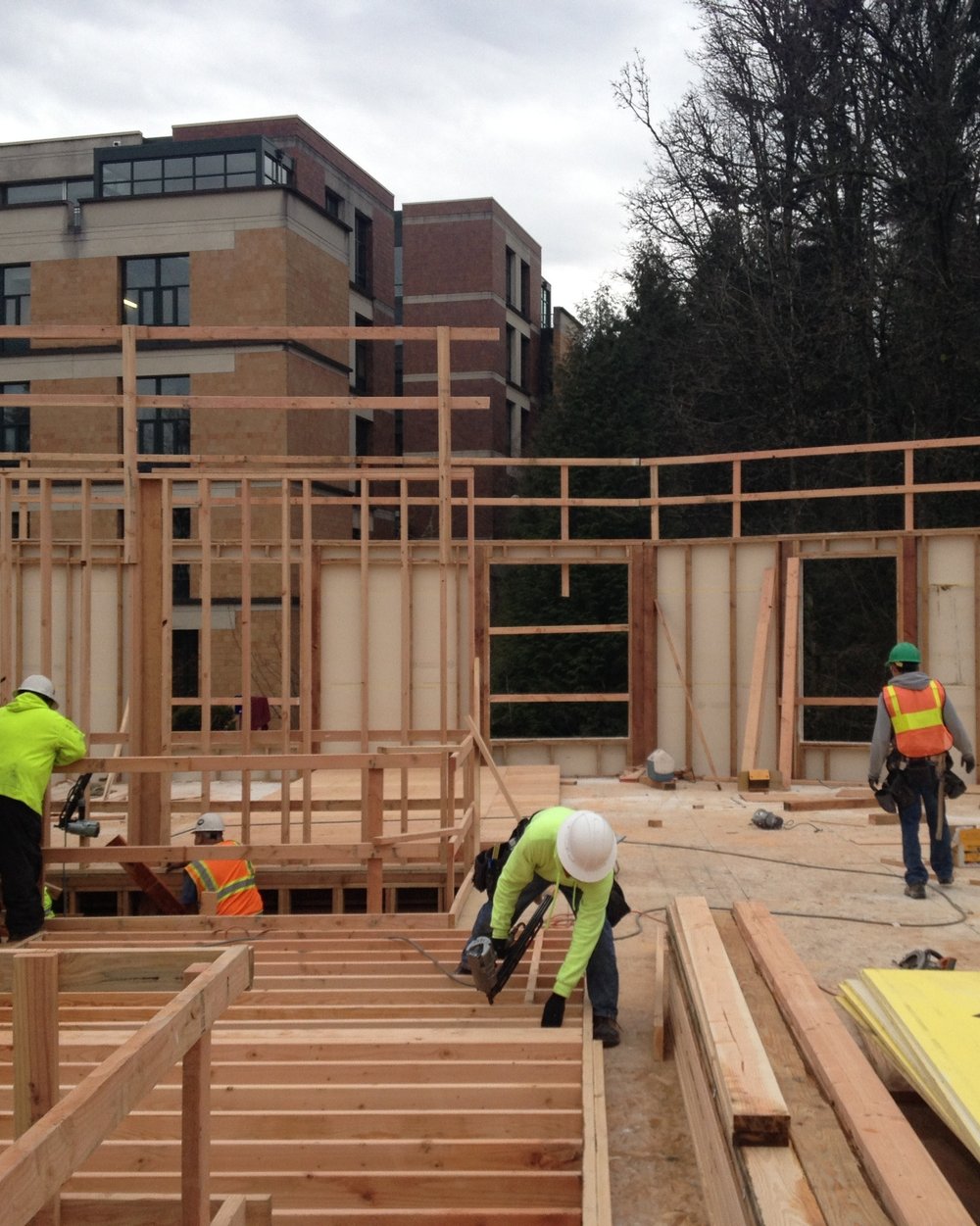

Framers construct the walls on the new deck of each floor and tilt them up into position.

Img 9730 1000 0x104x2448x3059 gray q85

4/5

Completion of the building's exterior framing and sheathing.

Img 3850 1000 0x8x2000x2985 gray q85

5/5

The variegated sheet metal cladding is installed on lifts by Skyline Sheet Metal.

Dsc02596 lr 1000 0x0x3000x2000 gray q85

1/5

Sub-grade site work begins by constructing drilled shafts for the new building foundation. Typical light-framed wood construction over a two story concrete podium rises above the site.

Img 1337 1000 0x0x3000x2000 gray q85

2/5

Light-framed wood construction over a two story concrete podium rises above the site.

Img 9428 900 381x0x1958x2448 q85

Façade mock-up

Image5 900 128x0x1024x1280 q85

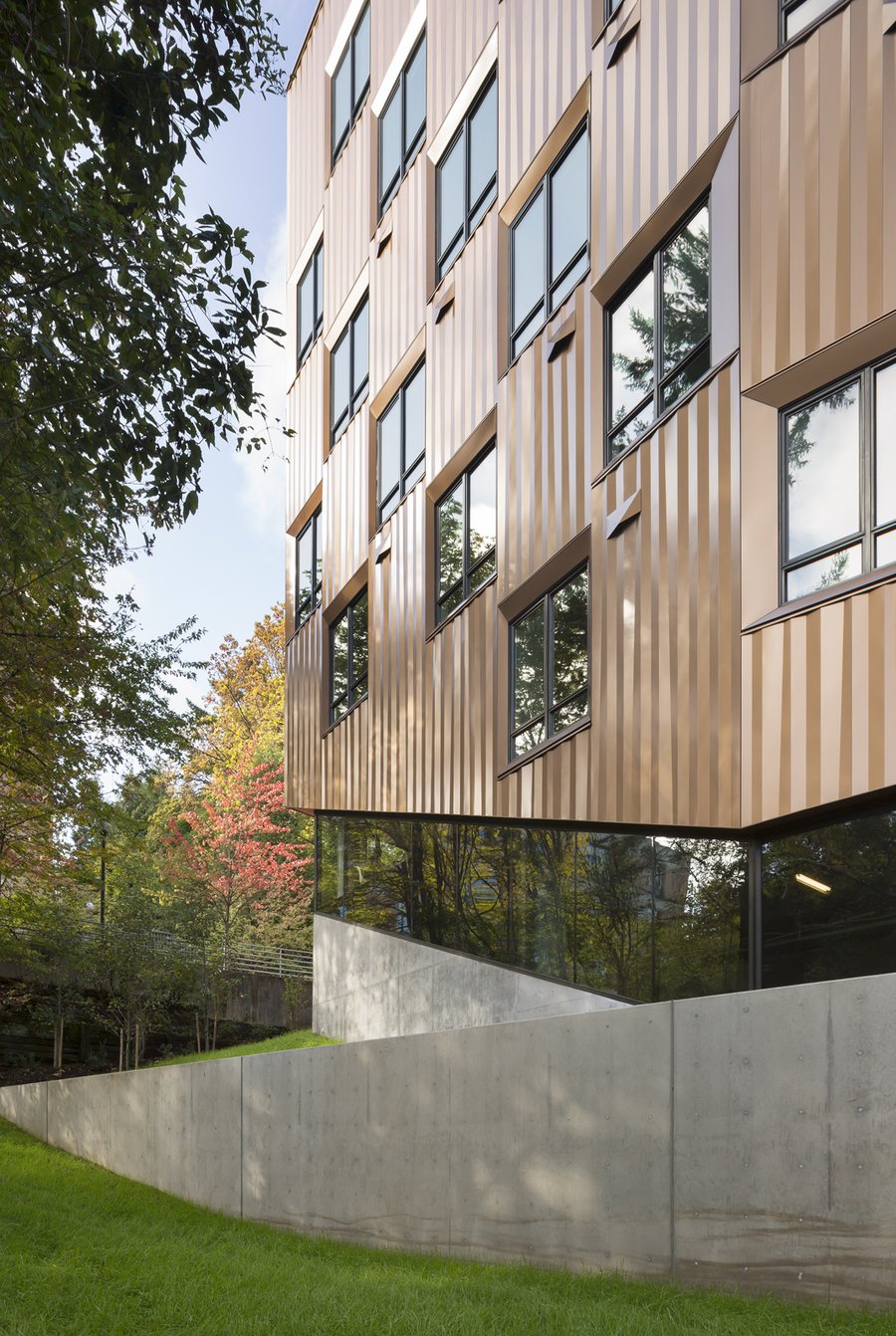

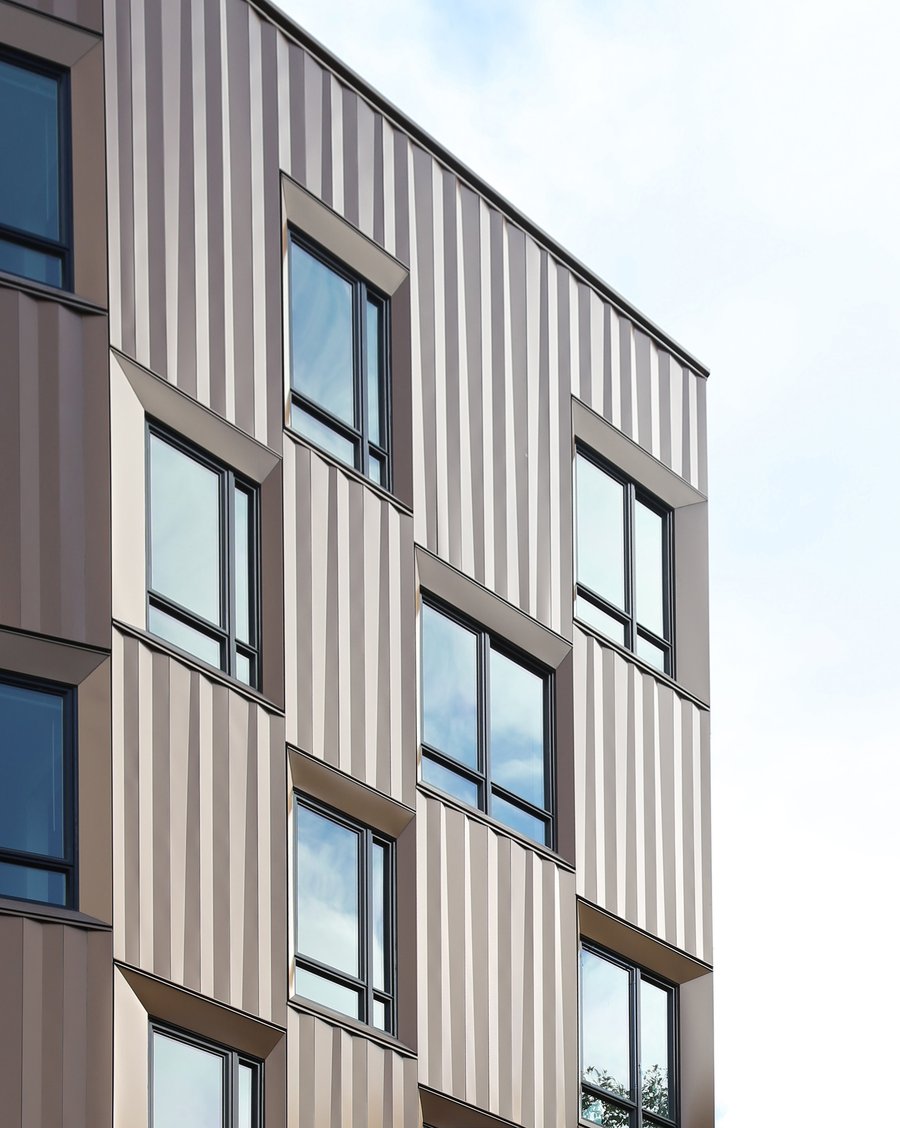

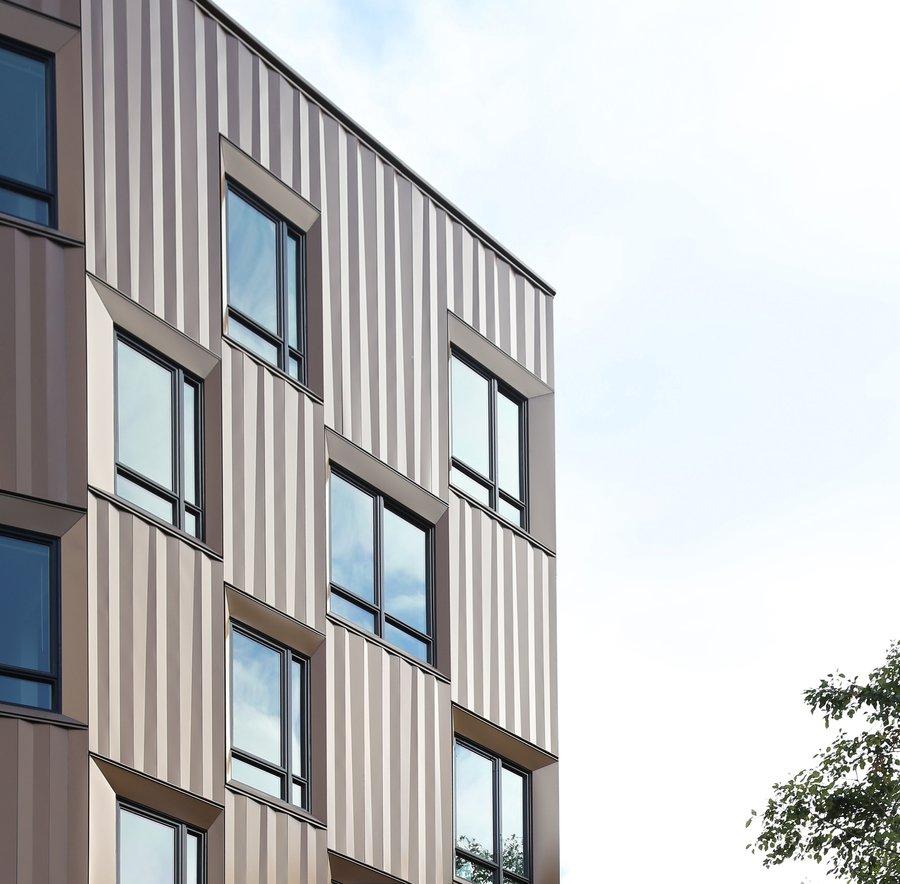

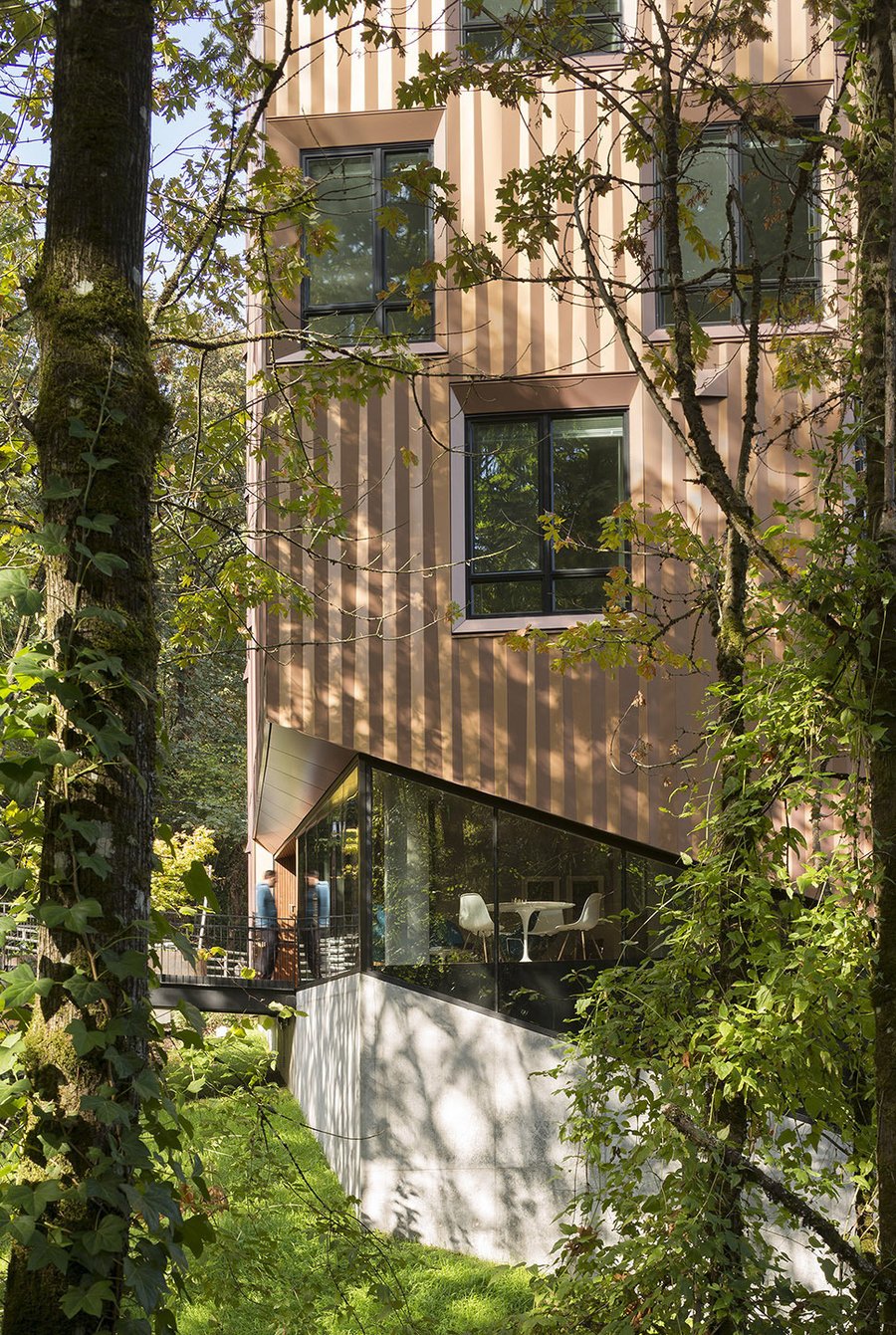

The façade of the building is inspired by the textures and light of the forest. A continuous carved building skin is achieved by eliminating the expression of floor levels by incorporating all expansion joints into the custom window surrounds. Special attention was paid to the framing to allow for the precise placement of the windows at the corners, as well as the detailing of thru façade venting. The skin has a consistent texture and pattern but intentional variety that gives the façade a dynamic quality that changes as you move along and around it and with time of day.

10 th enlarged elevation 1280 346x200x5313x3547 q85 bfff

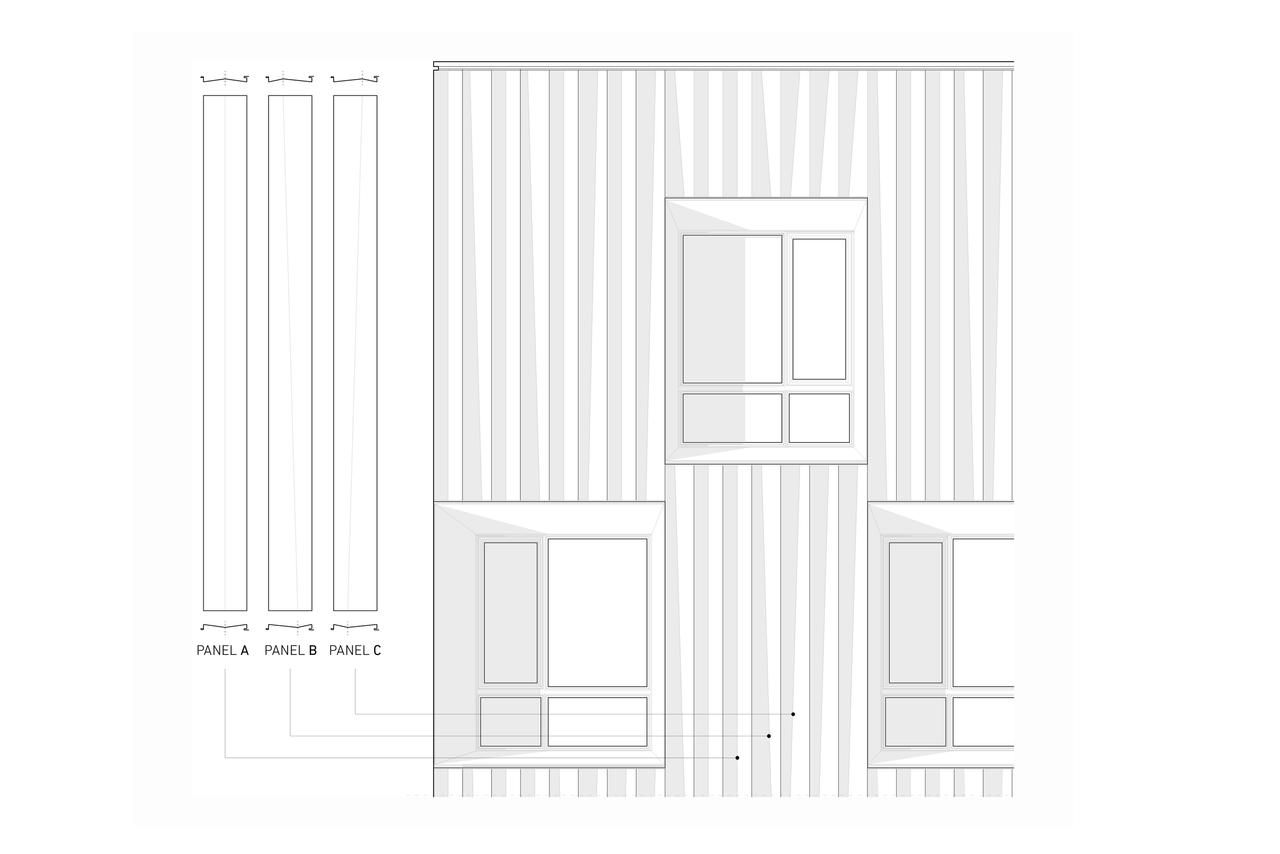

Façade system detail

Treehouse1 edit 900 0x0x2858x3582 q85
