Location

Portland, OR

Scale

19,000 sf

Program

Commercial

Completion

2017

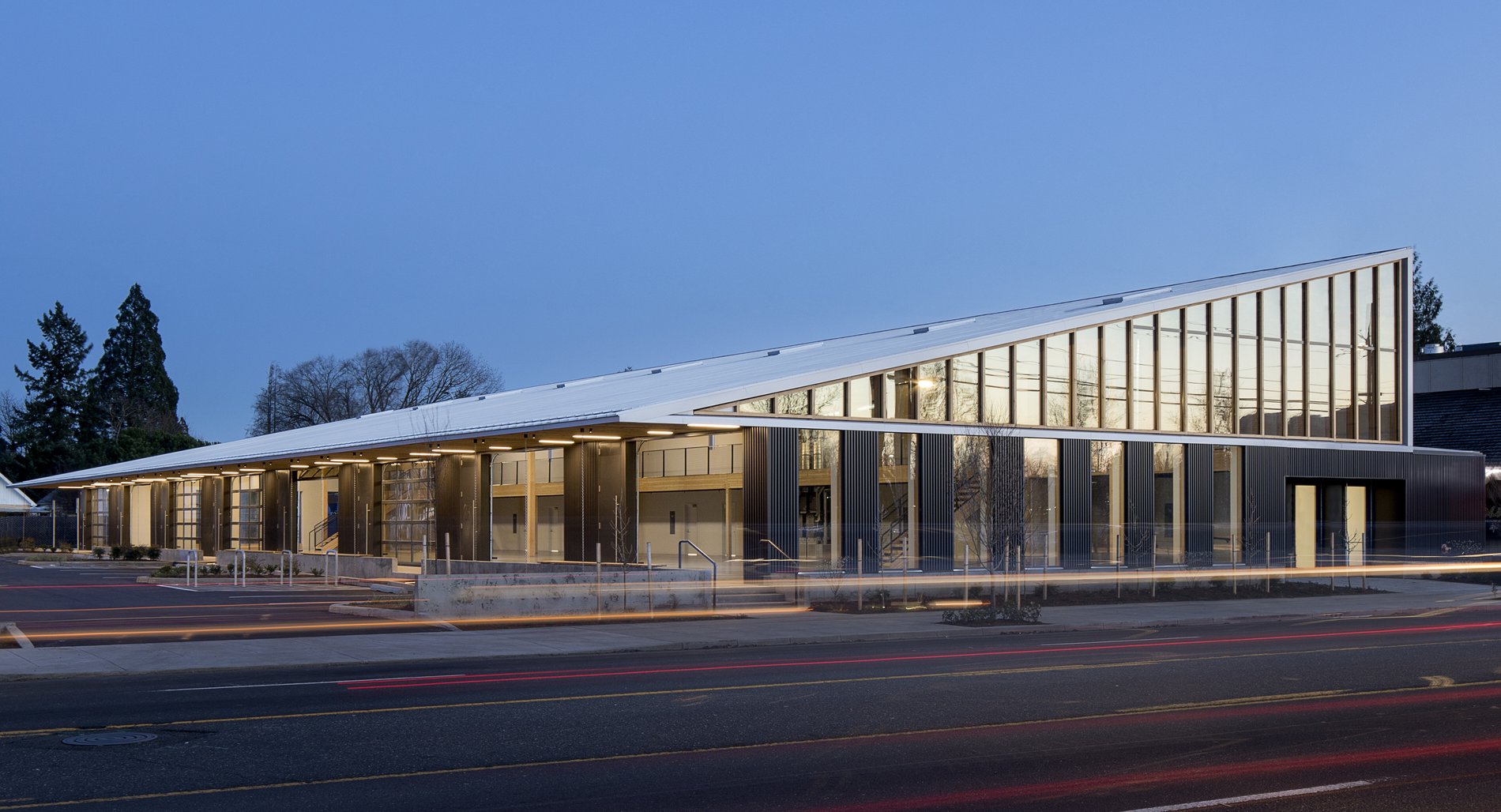

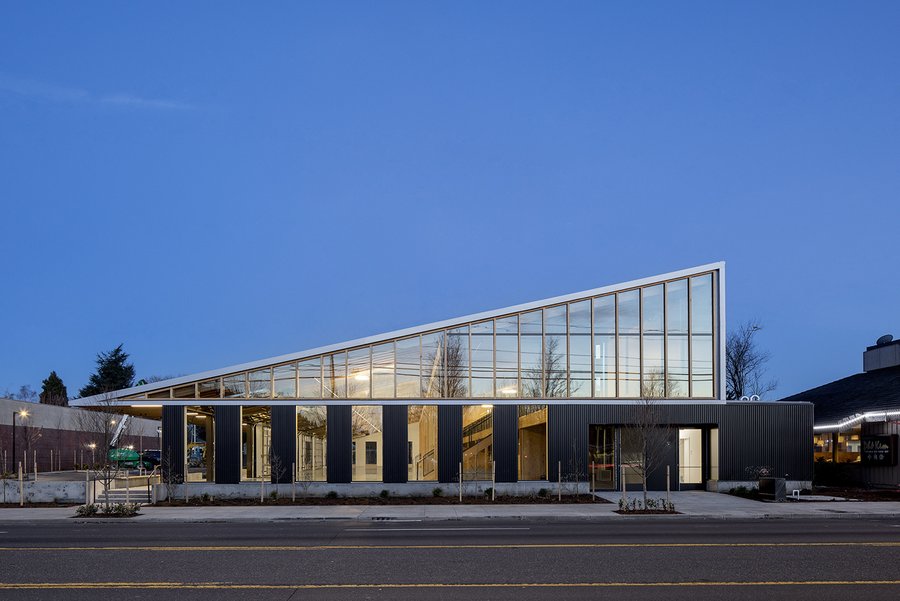

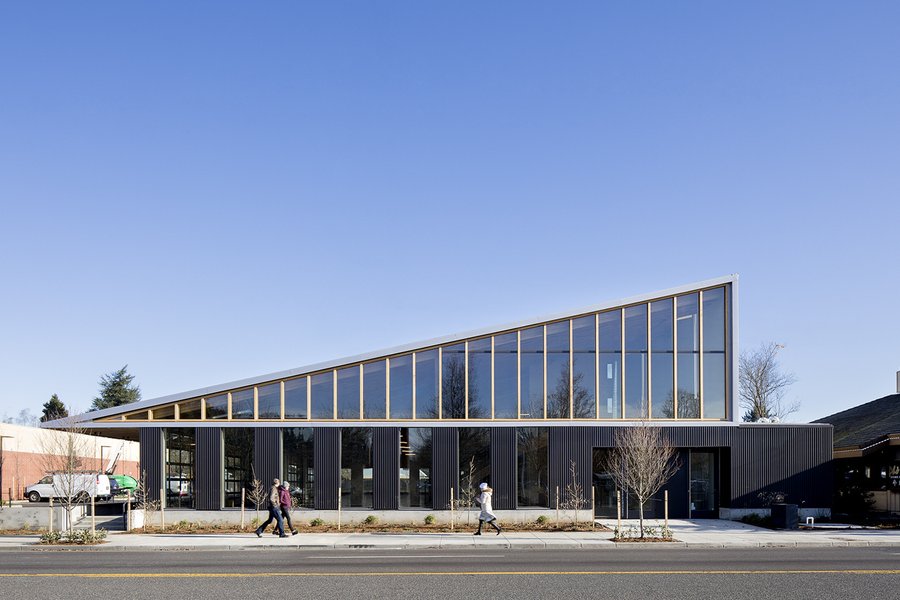

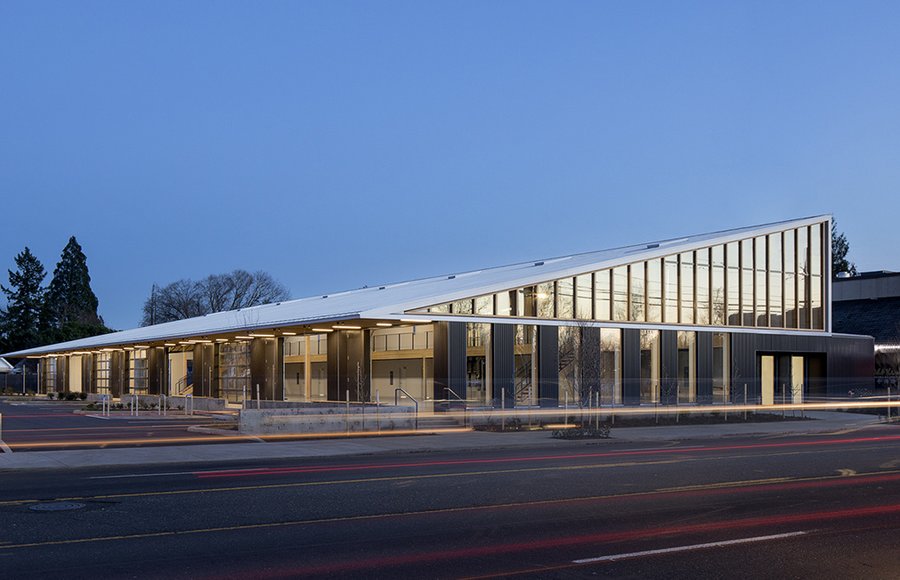

The project is a 19,000 sf commercial building that is an exploration of the industrial building typology typically know as “Flex." Generally constructed as simple industrial structures with metal roll up doors and interior mezzanines, the design elevates this ubiquitous typology with mass timber structural elements and a distinctive angular building form. Its large 200’ x 95’ open floor plate is divisible into eight, 24’ structural bays, allowing the building to be partitioned for diverse tenants, from a restaurant to small maker spaces. Inside, the open, loft-like interior blends industrial character with architectural quality. The 80’ triangular clerestory, skylights, and glass garage-style doors bring daylight into the deep floor plates.

Flex 09 900 111x124x1413x943 q85
Screen shot 2018 01 24 at 2.54.51 pm 900 0x77x1913x1267 q85 bfff

Neighborhood Context

Screen shot 2018 01 24 at 2.55.55 pm 900 54x0x1676x1112 q85 bfff
Flex 07 900 0x0x1458x974 q85
Img 7237 2 1280 221x0x2543x1694 q85

Being a speculative development with a highly economical budget, the team was challenged to find design, materials, building technology solutions that would bring architectural presence to an everyday structure. Flex’s innovative and economical design solutions include:

  • Perimeter walls were prefabricated in a factory off site, allowing for greater quality and faster installation
  • Iconic building form realized using off the shelf or prefabricated materials and systems
  • 6’ structural cantilever along the building entry created from panelized glulam and plywood modules that were assembled on site
  • Spacing of glulam roof beams at 2’ on center eliminated the need for blocking
  • Precut glulam structure resulted in faster installation
  • Alignment of skylight proportions with structural spans eliminated blocking
  • Economical material palette of sheet metal, glulam columns and beams, plywood, glass, and concrete

Inventive and cost-effective building solutions, together with careful coordination of the trades, resulted in an everyday building with architectural presence. The Flex project demonstrates that with care and innovation it is possible to raise the architectural quality of ordinary building types throughout our cities.

Img 5304 900 0x272x3264x2176 q85

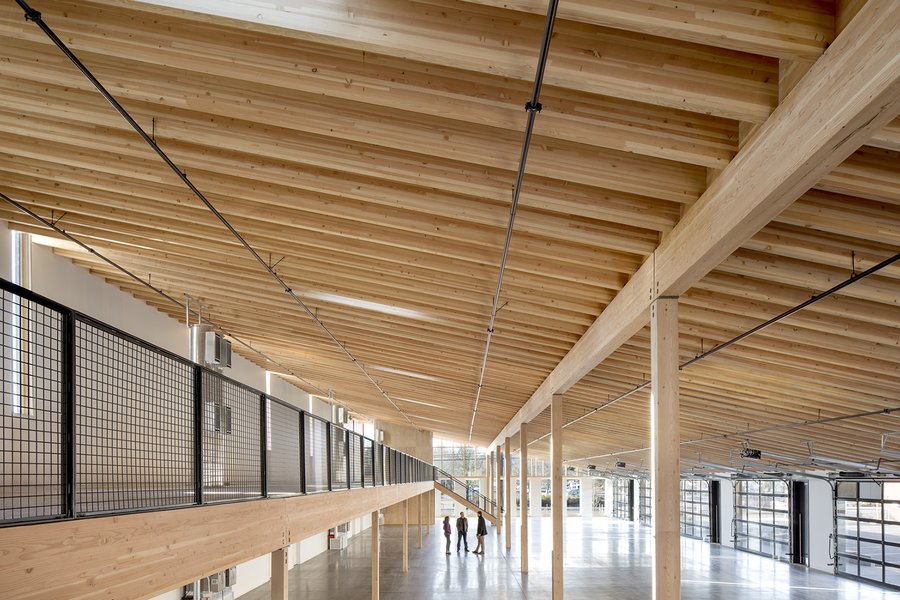

The wood ceiling is composed of 99 glulam beams of grade A plywood. The dense spacing of the structural members is an elegant solution that eliminates the need for blocking or additional supports.

Flex 05 1280 0x0x1600x1065 q85

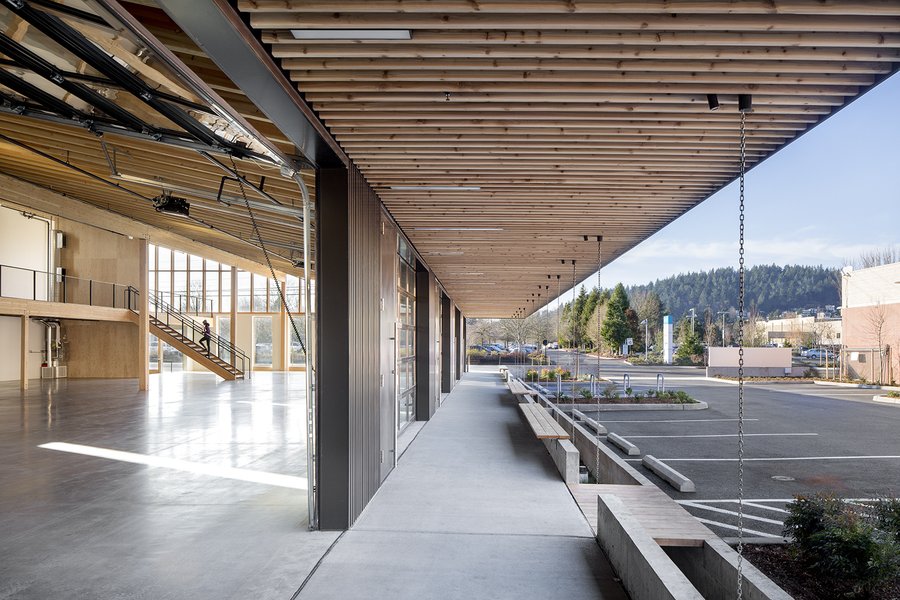

The 6' cantilever on the entry canopy was created with a modular glulam and plywood soffit module that was fabricated on site.

Flex 06 900 0x0x1600x1067 q85

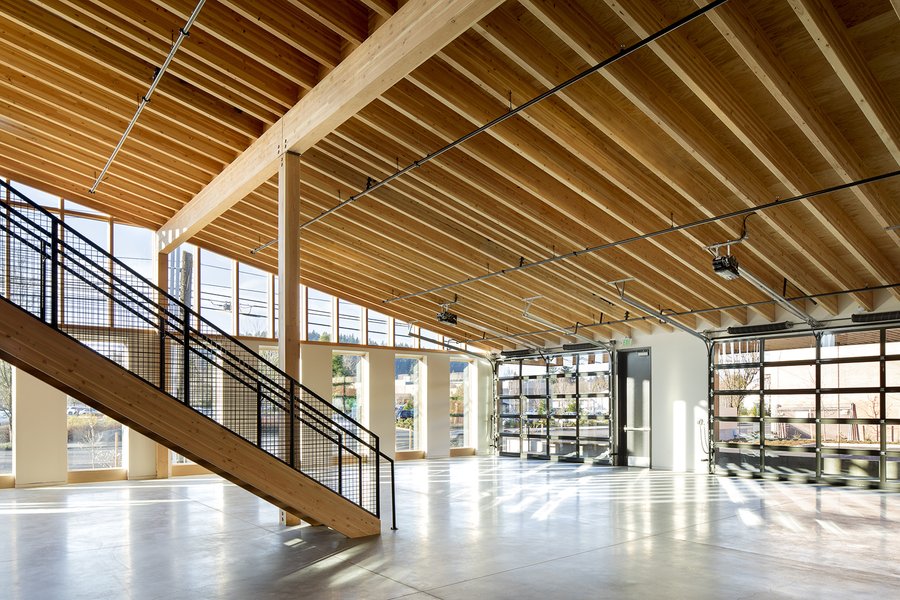

Interiors have a warm industrial sensibility, making the building ideally suited to creative businesses. 85'-long clerestories, large windows on the perimeter walls, skylights, and a glass roll down gate bring daylight to the vast floor plate.

Flex 04 900 396x271x1204x1193 q85
170816 flex2 1000 0x66x5275x3510 gray q85

6/7

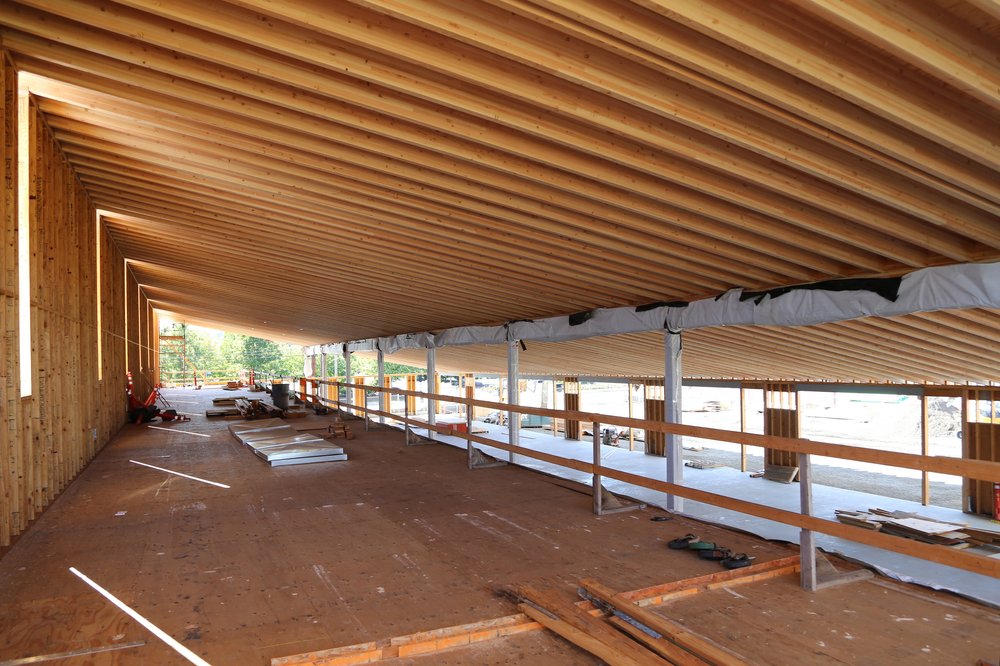

Alignment of skylights and windows on the mezzanine creates a controlled play of light across the space.

09 no blocking around skylight 1000 0x41x960x1198 gray q85

7/7

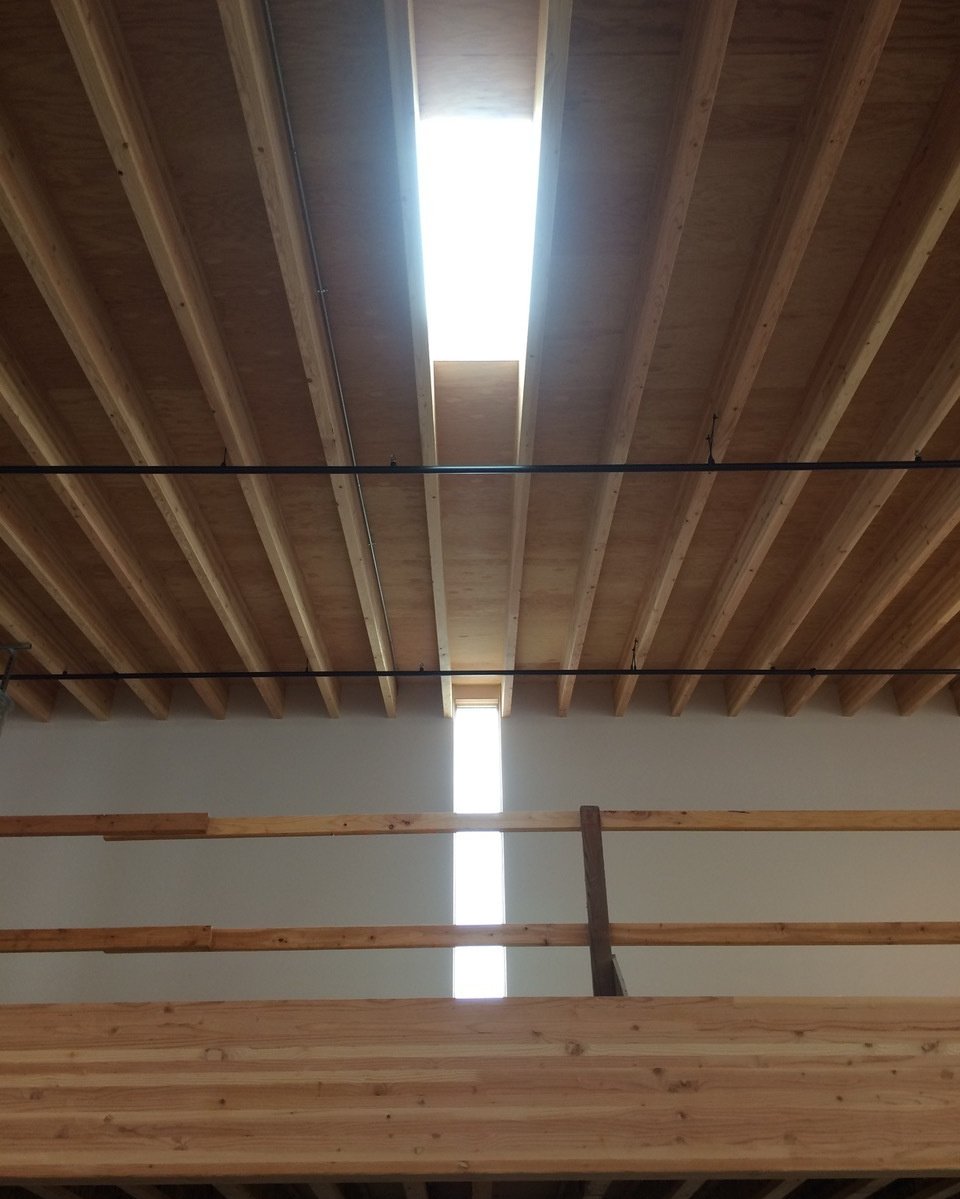

Alignment of overhead skylights and mezzanine level windows.

Img 4587 1000 0x139x3264x2175 gray q85

1/7

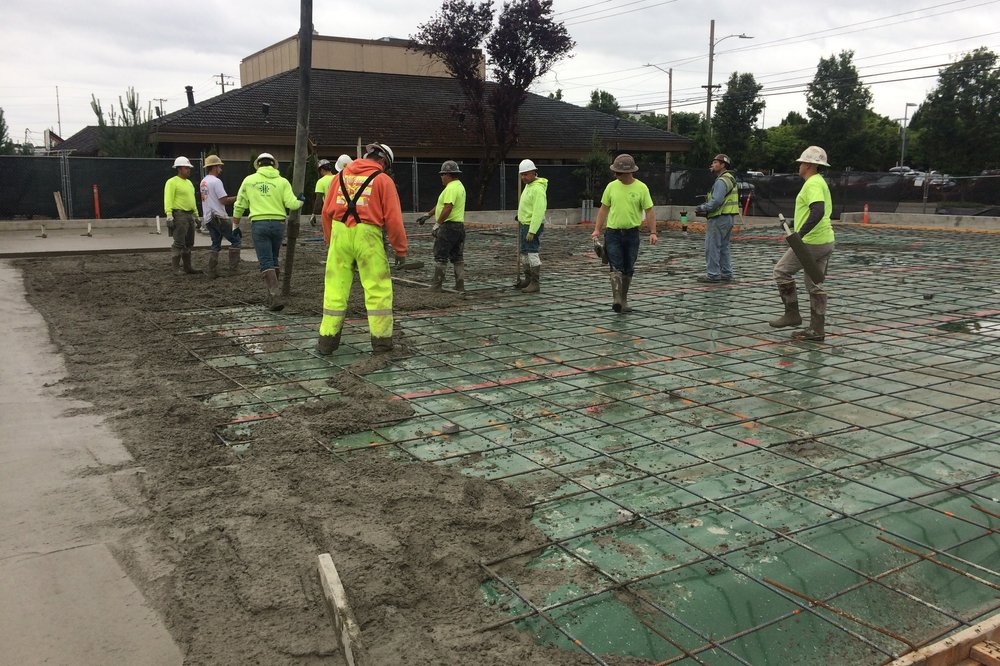

The construction team at work on the concrete foundation. A 2' by 6' footing was required to anchor the project's shear walls.

Img 4662 1000 0x205x2448x3056 gray q85

2/7

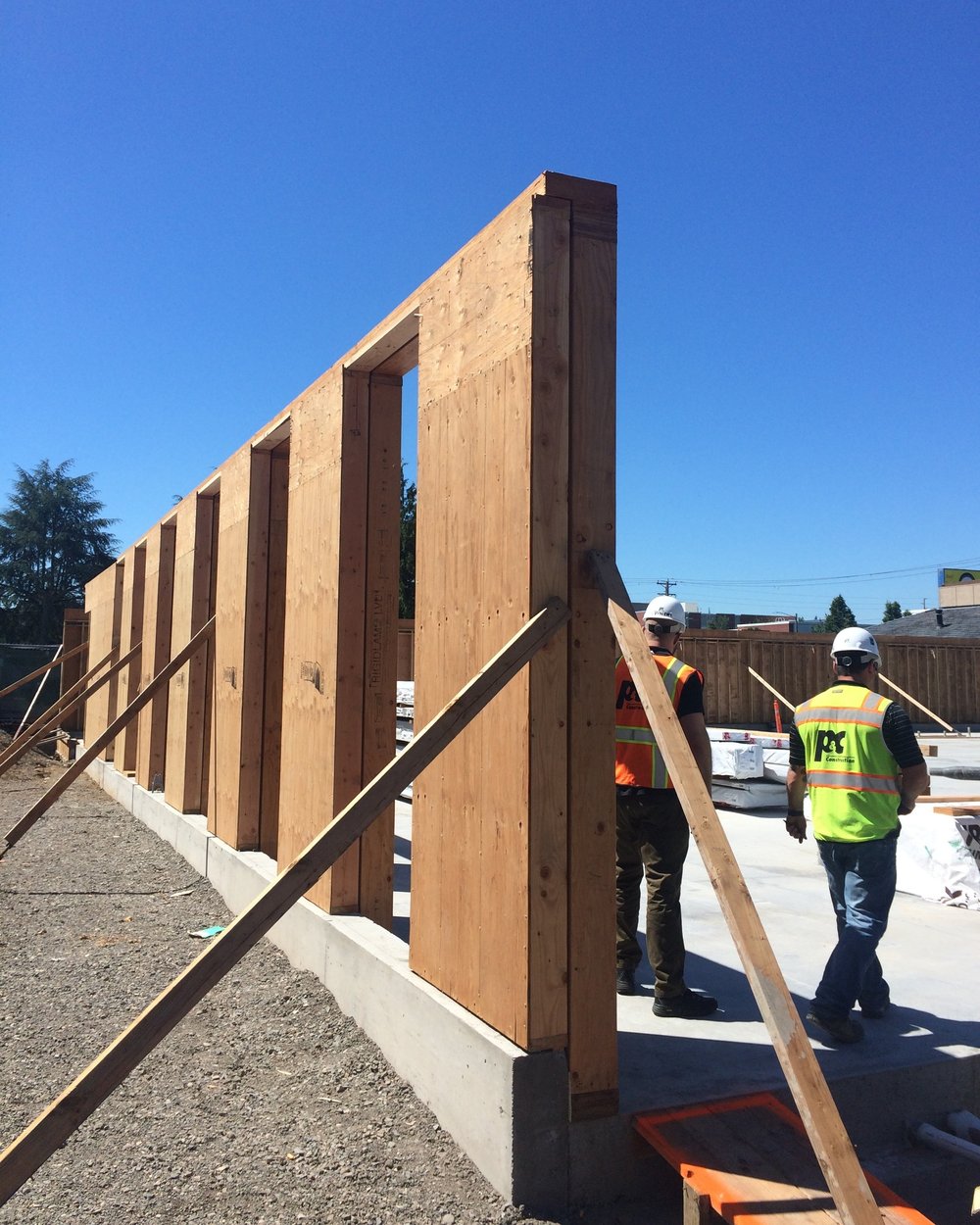

Perimeter walls were assembled at a factory and brought to the site ready to install.

Img 5037 1000 0x139x3264x2175 gray q85

3/7

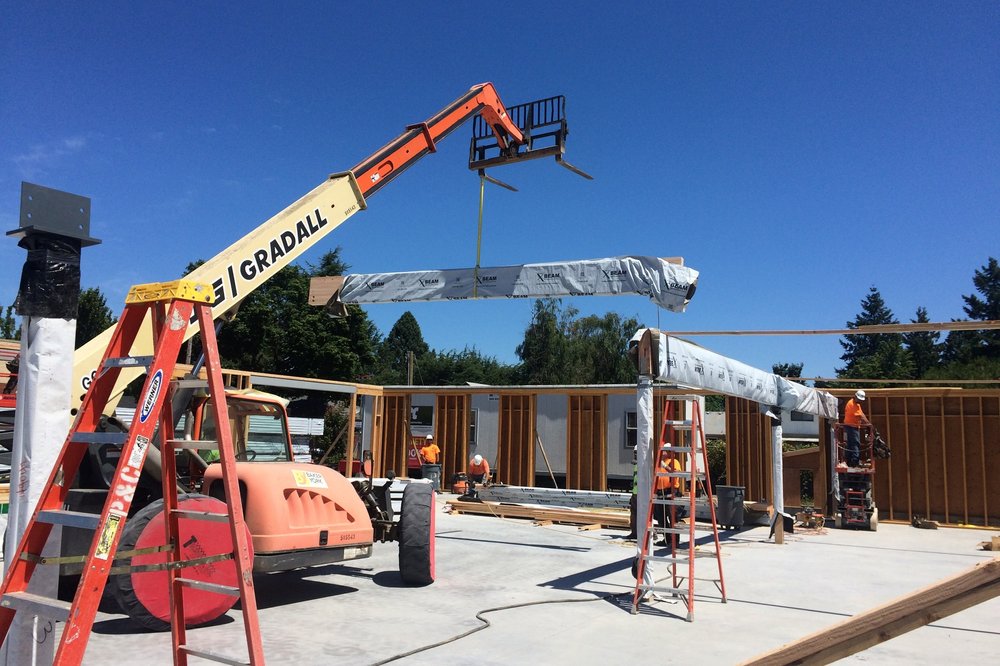

Installation of the structure's precut glulam beams.

07 prefabed soffit panels going in 1000 0x41x960x1198 gray q85

4/7

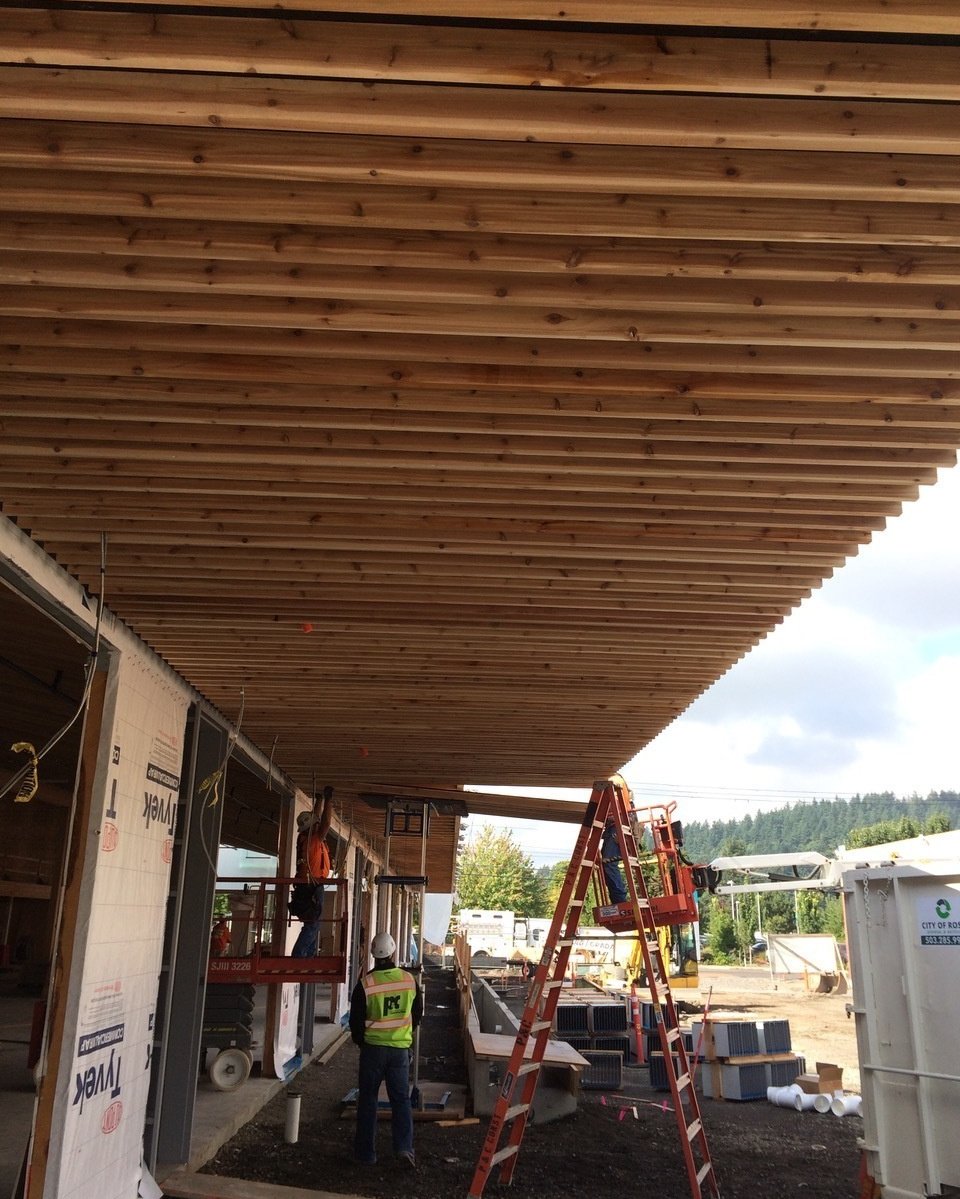

The cantilevered entry soffit is made from a simple glulam and plywood module that was fabricated on site.

06 jig for equally spacing out soffit 2x4s 1000 0x54x1280x853 gray q85

5/7

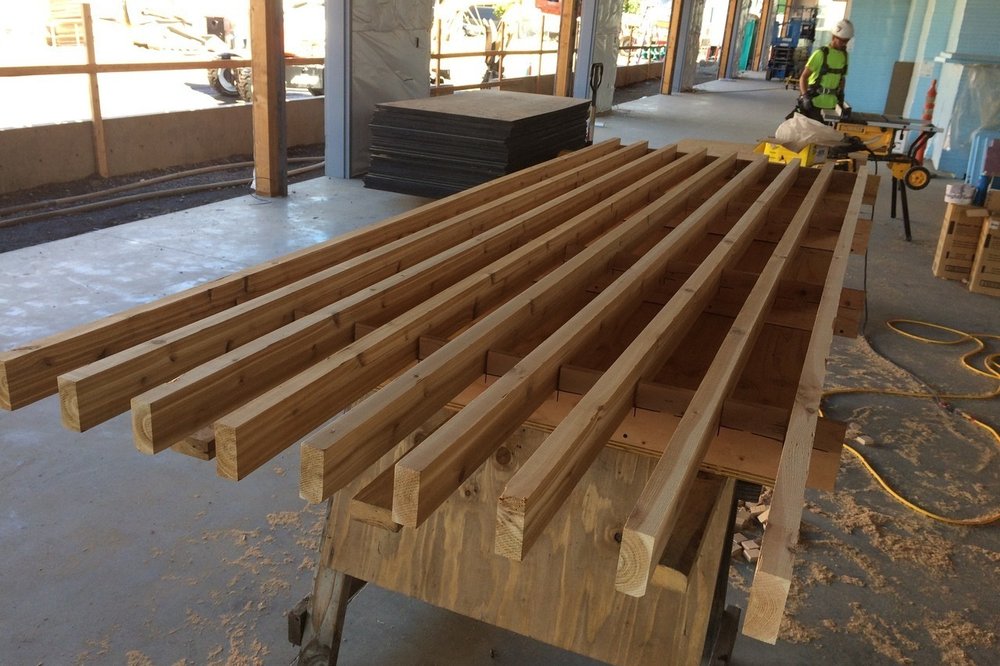

Assembly of one of the cantilevered entry modules/ soffit panels.

170816 flex2 1000 0x66x5275x3510 gray q85

6/7

Alignment of skylights and windows on the mezzanine creates a controlled play of light across the space.

09 no blocking around skylight 1000 0x41x960x1198 gray q85

7/7

Alignment of overhead skylights and mezzanine level windows.

Img 4587 1000 0x139x3264x2175 gray q85

1/7

The construction team at work on the concrete foundation. A 2' by 6' footing was required to anchor the project's shear walls.

Img 4662 1000 0x205x2448x3056 gray q85

2/7

Perimeter walls were assembled at a factory and brought to the site ready to install.
